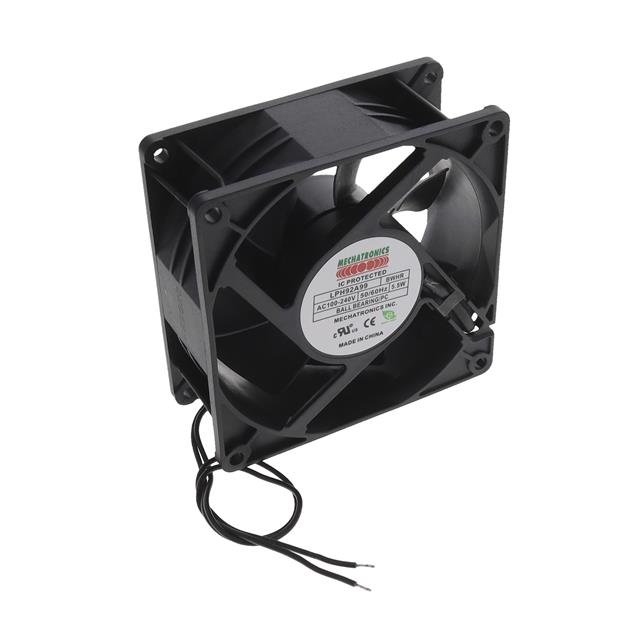

LPH92A99-BWHR-PC

Active

Mechatronics Fan Group

EC FAN AXIAL 92 X 92 X 38MM W/PA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPH92A99-BWHR-PC

Active

Mechatronics Fan Group

EC FAN AXIAL 92 X 92 X 38MM W/PA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.49
		10	$ 26.02
		25	$ 25.03
		50	$ 23.39
		100	$ 21.58
		250	$ 21.25

Description

General part information

LPH92 Series

Fan Tubeaxial 100 ~ 240VAC Square - 92mm L x 92mm H Ball 68.0 CFM (1.90m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LPH92A99-BWHR-PC	LPH92 Series

Air Flow	68 CFM	46 - 68 CFM
Air Flow	1.9 m³/min	1.29 - 1.9 mł/min
Approval Agency	-	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	110 mA	50 - 110 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Electronic Commutation (EC), Parylene Coating, Auto Restart	Auto Restart, Electronic Commutation (EC), Parylene Coating
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	50000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	42 dB	38 - 44 dB
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-40 °C
Operating Temperature	-	-40 °C
Power (Watts)	5.5 W	3.7 - 6.3 W
RPM	3500 RPM	3000 - 3500 RPM
Static Pressure	72.2 Pa	44.8 - 72.2 Pa
Static Pressure	0.29 in H2O	0.18 - 0.29 in H2O
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Voltage - Rated [Max]	240 VAC	240 VAC
Voltage - Rated [Min]	100 VAC	100 VAC
Voltage Range [Max]	264 VAC	264 VAC
Voltage Range [Min]	90 VAC	90 VAC
Weight	0.384 lb	0.234 - 0.384 lb
Weight	174.18 g	106.14 - 174.18 g
Width	-	25.5 mm
Width [y]	38 mm	38 mm

LPH92 Series

FAN AXIAL 92X25.5MM 100-240VAC

Part	Current Rating (Amps)	Features	Fan Type	Noise	RPM	Weight	Weight	Material - Frame	Termination	Material - Blade	Width [x]	Power (Watts)	Approval Agency	Voltage - Rated [Min]	Voltage - Rated [Max]	Static Pressure	Static Pressure	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection	Width [y]
Mechatronics Fan Group LPH92B99-BTHR	60 mA	Auto Restart, Electronic Commutation (EC)	Tubeaxial	44 dB	3500 RPM	0.234 lb	106.14 g	Plastic	2 Terminals	Plastic	25.5 mm	6.3 W	CE, cUL, TUV, UL	100 VAC	240 VAC	67.3 Pa	0.27 in H2O	56 CFM	1.57 mł/min	70 °C	70 °C	-40 °C	-40 °C	Ball
Mechatronics Fan Group LPH92B99-BTMR	50 mA	Auto Restart, Electronic Commutation (EC)	Tubeaxial	38 dB(A)	3000 RPM			Plastic	2 Terminals	Plastic	25.5 mm	3.7 W	CE, cUL, TUV, UL	100 VAC	240 VAC	44.8 Pa	0.18 in H2O	46 CFM	1.29 mł/min	70 °C	70 °C	-40 °C	-40 °C	Ball	50000 Hrs	90 VAC	264 VAC
Mechatronics Fan Group LPH92B99-BWHR-PC	60 mA	Auto Restart, Electronic Commutation (EC), Parylene Coating	Tubeaxial	44 dB	3500 RPM	0.234 lb	106.14 g	Plastic	2 Wire Leads	Plastic	25.5 mm	6.3 W		100 VAC	240 VAC	67.3 Pa	0.27 in H2O	56 CFM	1.57 mł/min					Ball		90 VAC	264 VAC	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group LPH92A99-BWHR-PC	110 mA	Auto Restart, Electronic Commutation (EC), Parylene Coating	Tubeaxial	42 dB	3500 RPM	0.384 lb	174.18 g	Plastic	2 Wire Leads	Plastic		5.5 W		100 VAC	240 VAC	72.2 Pa	0.29 in H2O	68 CFM	1.9 m³/min					Ball		90 VAC	264 VAC	IP55 - Dust Protected, Water Resistant	38 mm
