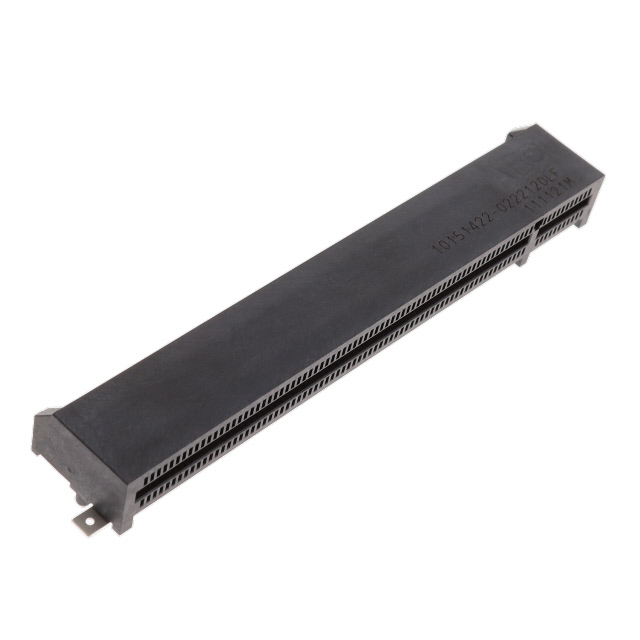

10151422-0222120LF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 164POS 0.039

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 164POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	10151422-0222120LF

Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type	Surface Mount, Right Angle
Number of Positions	164
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Number of Rows	Termination	Contact Material	Gender	Color	Contact Finish	Number of Positions/Bay/Row [custom]	Features	Material - Insulation	Pitch [x]	Pitch [x]	Termination Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) 10151422-0122120LF	2	Solder	Copper Alloy	Female	Black	Gold	82	Board Guide	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	2	164	15 µin	0.38 µm	PCI Express™	Dual	Surface Mount Right Angle
Amphenol ICC (FCI) 10151422-0112110LF	2	Solder	Copper Alloy	Female	Black	Gold	49	Board Guide	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	2	98	15 µin	0.38 µm	PCI Express™	Dual	Surface Mount Right Angle
Amphenol ICC (FCI) 10151422-0222120LF	2	Solder	Copper Alloy	Female	Black	Gold		Board Guide Solder Retention	Liquid Crystal Polymer (LCP) Glass Filled	0.039 in	1 mm		164	30 Áin	0.76 Ám	PCI Express™	Dual	Surface Mount Right Angle	105 ░C	-55 °C
