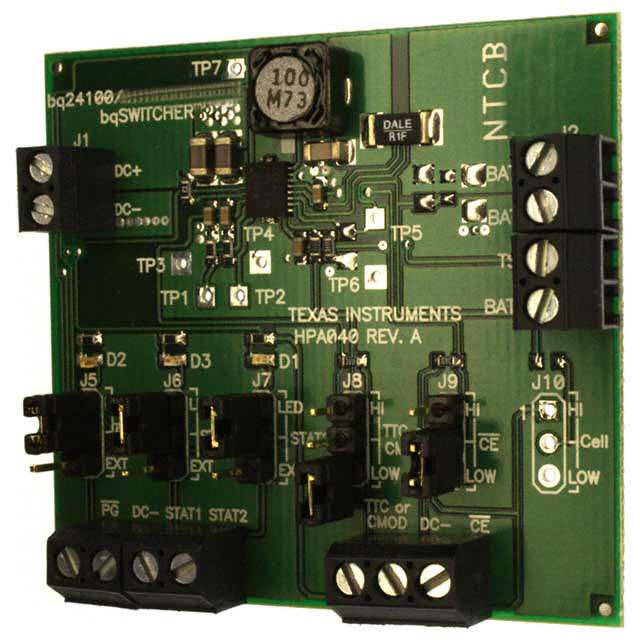

BQ24100EVM
ActiveEVALUATION MODULE FOR BQ24100
Deep-Dive with AI
Search across all available documentation for this part.
BQ24100EVM
ActiveEVALUATION MODULE FOR BQ24100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24100EVM | BQ24100 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 2 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | Status LEDs, Cell Temperature Monitoring, Safety Timer | Status LEDs, Cell Temperature Monitoring, Safety Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-VQFN (3.5x4.5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24100 | BQ24100 |
| Voltage - Supply (Max) | - | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.80 | |
BQ24100 Series
Standalone 1cell 2A synchronous Buck battery charger
| Part | Battery Chemistry | Programmable Features | Voltage - Supply (Max) [Max] | Current - Charging | Mounting Type | Supplier Device Package | Charge Current - Max [Max] | Number of Cells | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Package / Case | Battery Pack Voltage | Primary Attributes | Embedded | Function | Supplied Contents | Utilized IC / Part | Type | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24100RHLR | Lithium Ion/Polymer | Current, Timer | 16 V | Constant - Programmable | Surface Mount | 20-VQFN (3.5x4.5) | 2 A | 1 | 85 °C | -40 °C | Over Temperature, Over Voltage | 20-VFQFN Exposed Pad | 4.2 V | |||||||
Texas Instruments BQ24100RHLRG4 | Lithium Ion/Polymer | Current, Timer | 16 V | Constant - Programmable | Surface Mount | 20-VQFN (3.5x4.5) | 2 A | 1 | 85 °C | -40 °C | Over Temperature, Over Voltage | 20-VFQFN Exposed Pad | 4.2 V | |||||||
Texas Instruments BQ24100EVM | Li-Ion / Li-Pol (1 Cell) | Battery Charger | Board(s) | BQ24100 | Power Management | Cell Temperature Monitoring, Safety Timer, Status LEDs |
Description
General part information
BQ24100 Series
The bqSWITCHER™ series are highly integrated Li-ion and Li-polymer switch-mode charge management devices targeted at a wide range of portable applications. The bqSWITCHER™ series offers integrated synchronous PWM controller and power FETs, high-accuracy current and voltage regulation, charge preconditioning, charge status, and charge termination, in a small, thermally enhanced VQFN package. The system-controlled version provides additional inputs for full charge management under system control.
The bqSWITCHER™ charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on user- selectable minimum current level. A programmable charge timer provides a safety backup for charge termination. The bqSWITCHER™ automatically restarts the charge cycle if the battery voltage falls below an internal threshold. The bqSWITCHER™ automatically enters sleep mode when VCCsupply is removed.
The bqSWITCHER™ series are highly integrated Li-ion and Li-polymer switch-mode charge management devices targeted at a wide range of portable applications. The bqSWITCHER™ series offers integrated synchronous PWM controller and power FETs, high-accuracy current and voltage regulation, charge preconditioning, charge status, and charge termination, in a small, thermally enhanced VQFN package. The system-controlled version provides additional inputs for full charge management under system control.
