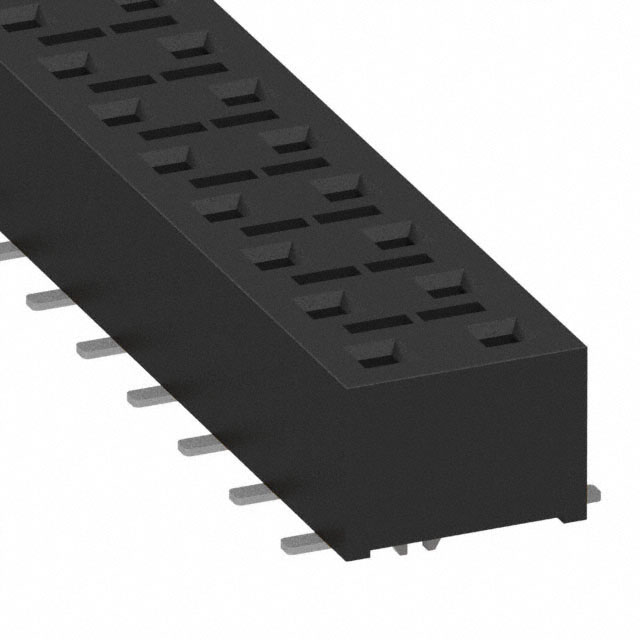

HLE-125-02-L-DV-LC-P

Active

Samtec Inc.

CONN RCPT 50POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

HLE-125-02-L-DV-LC-P

Active

Samtec Inc.

CONN RCPT 50POS 0.1 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLE-125-02-L-DV-LC-P

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.1 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Lock
Insulation Color	Black
Insulation Height	3.66 mm
Insulation Height	0.144 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	400 VAC

HLE-136 Series

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Voltage Rating	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Contact Material	Contact Shape	Number of Rows	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post
Samtec Inc. HLE-120-02-F-DV-A-P	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	40	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2	Board Guide Pick and Place	3 µin	0.076 µm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-117-02-G-DV-A-P-TR	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	34	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Gold	Beryllium Copper	Square	2	Board Guide Pick and Place	20 µin	0.51 µm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm
Samtec Inc. HLE-150-02-L-DV-BE	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	100	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle Bottom Entry	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-108-02-L-DV	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in		400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm			16
Samtec Inc. HLE-107-02-G-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	14	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Gold	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm		0.09 "	2.29 mm
Samtec Inc. HLE-113-02-L-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	26	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
Samtec Inc. HLE-107-02-G-DV-LC-P-TR	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	14	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Gold	Beryllium Copper	Square	2	Board Lock Pick and Place	20 µin	0.51 µm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm
Samtec Inc. HLE-104-02-F-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	8	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		3 µin	0.076 µm	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
Samtec Inc. HLE-125-02-L-DV-LC-P	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	50	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2	Board Lock Pick and Place	10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-104-02-S-DV-PE	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	8	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		30 Áin	0.76 Ám	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 11.84

Description

General part information

HLE-136 Series

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

Documents

Technical documentation and resources

No documents available
