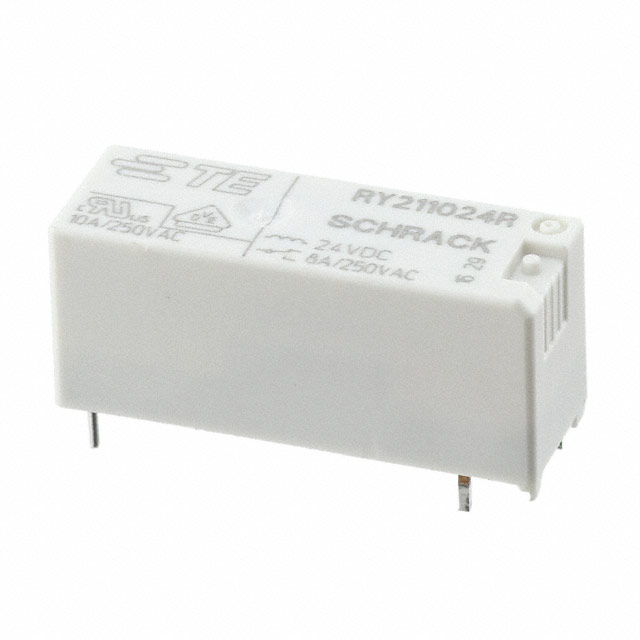

RY211024R

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RY211024R

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RY211024R

Approval Agency	cURus, VDE
Coil Current	10.2 mA
Coil Resistance	2.35 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	9 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

RY2110 Series

Part	Switching Voltage [Max]	Coil Current	Must Release Voltage	Relay Type	Contact Material	Release Time	Must Operate Voltage	Load - Max Switching	Termination Style	Coil Resistance	Coil Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Contact Form	Mounting Type	Seal Rating	Contact Rating (Current)	Coil Voltage
TE Connectivity Potter & Brumfield Relays RY211006	400 VAC	37 mA	0.6 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	4.2 VDC	3200 VA	PC Pin	162 Ohms	Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole	Sealed - Flux Protection	8 A
TE Connectivity Potter & Brumfield Relays 4-1393224-4	400 VAC		0.8 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	5.6 VDC	3200 VA	PC Pin		Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole	Sealed - Flux Protection	8 A	8 VDC
TE Connectivity Potter & Brumfield Relays 4-1393224-8	400 VAC		2.1 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	14.7 VDC	3200 VA	PC Pin		Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole	Sealed - Flux Protection	8 A	21 VDC
TE Connectivity Potter & Brumfield Relays RY211024R	400 VAC	10.2 mA	2.4 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	16.8 VDC	3200 VA	PC Pin	2.35 kOhms	Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole	Sealed - Flux Protection	8 A	24 VDC
TE Connectivity Potter & Brumfield Relays RY211048	400 VAC	5.1 mA	4.8 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	33.6 VDC	3200 VA	PC Pin	9.4 kOhms	Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole	Sealed - Flux Protection	8 A	48 VDC
TE Connectivity Potter & Brumfield Relays 1-1956170-2	400 VAC	44.6 mA	0.5 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	3.5 VDC	3200 VA	PC Pin	112 Ohms	Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole		8 A	5 VDC
TE Connectivity Potter & Brumfield Relays RY211012	400 VAC	19.2 mA	1.2 VDC	General Purpose	Silver Nickel (AgNi)	5 ms	8.4 VDC	3200 VA	PC Pin	627 Ohms	Non Latching	9 ms	-40 °C	70 °C	cURus VDE	SPDT (1 Form C)	Through Hole	Sealed - Flux Protection	8 A	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.17
		10	$ 3.91
		25	$ 3.47
		50	$ 3.30
		100	$ 3.13
	Tape & Reel (TR)	280	$ 2.78
		560	$ 2.61
		1400	$ 2.43
		2800	$ 2.39

Description

General part information

RY2110 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
