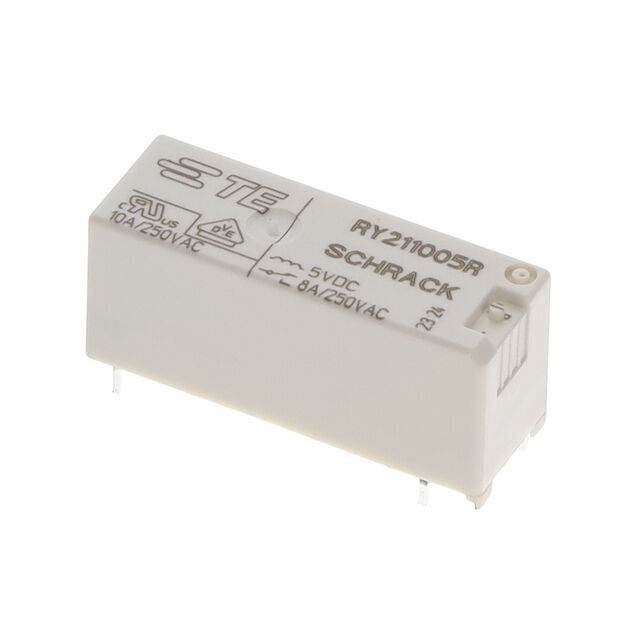

1-1956170-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 8A 5V
Deep-Dive with AI
Search across all available documentation for this part.
1-1956170-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 8A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1956170-2 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 44.6 mA |
| Coil Resistance | 112 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.17 | |
| 10 | $ 3.91 | |||
| 25 | $ 3.47 | |||
| 50 | $ 3.30 | |||
| 100 | $ 3.13 | |||
| Tape & Reel (TR) | 280 | $ 2.63 | ||
| 560 | $ 2.52 | |||
| 840 | $ 2.46 | |||
| 1400 | $ 2.39 | |||
| 1960 | $ 2.35 | |||
| 2800 | $ 2.30 | |||
Description
General part information
RY2110 Series
General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Documents
Technical documentation and resources
No documents available
