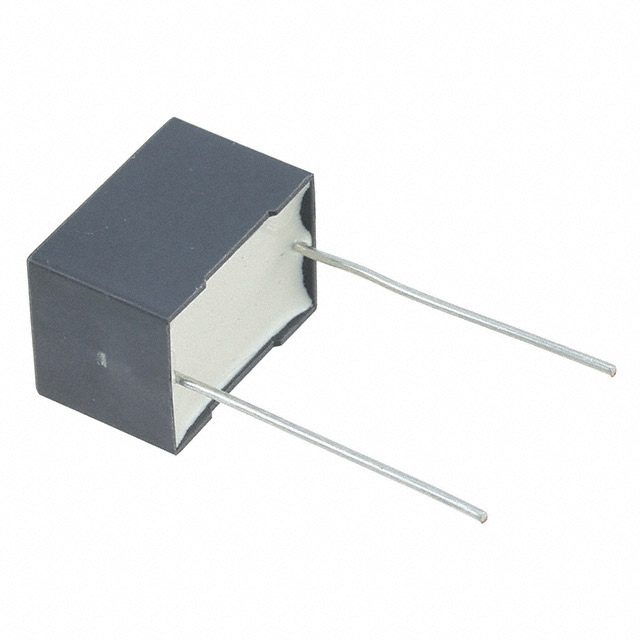

R463I33305001K - R463I33305001K

R463I33305001K

Active
KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.33 ΜF, ± 10%, X2, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR463I33305001K SpecDatasheet+3
R463I33305001K - R463I33305001K

R463I33305001K

Active
KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.33 ΜF, ± 10%, X2, THROUGH HOLE

Deep-Dive with AI

DocumentsR463I33305001K SpecDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationR463I33305001K
ApplicationsEMI, RFI Suppression
Capacitance0.33 µF
Dielectric MaterialMetallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]12.1 mm
Height - Seated (Max) [Max] [z]0.476 "
Lead Spacing15 mm
Lead Spacing0.591 in
Mounting TypeThrough Hole
Operating Temperature [Max]110 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial
RatingsX2
Size / Dimension [x]18 mm
Size / Dimension [x]0.709 in
Size / Dimension [y]13 mm
Size / Dimension [y]0.512 in
TerminationPC Pins
Tolerance10 %
Voltage Rating - AC310 V

R463I Series

PartCapacitanceApplicationsHeight - Seated (Max) [Max]Height - Seated (Max) [Max]Package / CaseToleranceRatingsOperating Temperature [Min]Operating Temperature [Max]Voltage Rating - ACTerminationSize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]Mounting TypeDielectric MaterialLead SpacingLead SpacingHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Size / Dimension [y]Size / Dimension [y]Size / Dimension [x]
KEMET
R463I333040N0M
0.33 µF
EMI
RFI Suppression
0.575 in
14.6 mm
Radial
20 %
X2
-40 °C
110 °C
310 V
PC Pins
0.709 in
8.5 mm
18 mm
0.335 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
KEMET
R463I333040H2M
0.33 µF
EMI
RFI Suppression
Radial
20 %
X2
-40 °C
125 °C
310 V
PC Pins
0.709 in
7.5 mm
18 mm
0.295 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
18.6 mm
0.732 in
KEMET
R463I322000L2M
0.22 µF
EMI
RFI Suppression
Radial
20 %
X2
-40 °C
110 °C
310 V
PC Pins
0.709 in
18 mm
0.354 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
12.6 mm
0.496 "
9 mm
KEMET
R463I33305001K
0.33 µF
EMI
RFI Suppression
Radial
10 %
X2
-40 °C
110 °C
310 V
PC Pins
13 mm
18 mm
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
12.1 mm
0.476 "
0.512 in
0.709 in
KEMET
R463I315040M2M
0.15 ÁF
EMI
RFI Suppression
Radial
20 %
X2
-40 °C
110 °C
310 V
PC Pins
0.709 in
6 mm
18 mm
0.236 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
12.1 mm
0.476 "
KEMET
R463I233000H1K
0.033 çF
EMI
RFI Suppression
0.437 in
11.1 mm
Radial
10 %
X2
-40 °C
125 °C
310 V
PC Pins
0.709 in
5 mm
18 mm
0.197 "
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
KEMET
R463I26804001M
0.068 µF
EMI
RFI Suppression
0.437 in
11.1 mm
Radial
20 %
X2
-40 °C
110 °C
310 V
PC Pins
0.709 in
5 mm
18 mm
0.197 "
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
KEMET
R463I322000M2M
0.22 µF
EMI
RFI Suppression
Radial
20 %
X2
-40 °C
110 °C
310 V
PC Pins
0.709 in
7.5 mm
18 mm
0.295 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
KEMET
R463I322050L2K
0.22 µF
EMI
RFI Suppression
Radial
10 %
X2
-40 °C
110 °C
310 V
PC Pins
0.709 in
18 mm
0.354 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in
12.6 mm
0.496 "
9 mm
KEMET
R463I3220CKH1K
0.22 µF
EMI
RFI Suppression
0.575 in
14.6 mm
Radial
10 %
X2
-40 °C
125 °C
310 V
PC Pins
0.709 in
8.5 mm
18 mm
0.335 in
Through Hole
Metallized
Polypropylene (PP)
15 mm
0.591 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.33
10$ 0.92
50$ 0.74
490$ 0.57
980$ 0.53
1470$ 0.51
2940$ 0.48
5390$ 0.46
NewarkEach 10$ 0.73
25$ 0.72
50$ 0.71
100$ 0.70
500$ 0.54
1000$ 0.47

Description

General part information

R463I Series

The R46 310V Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0. For worldwide use in electromagnetic interference (EMI) suppression in across-the-line applications requiring X2 safety classification. Intended for use in situations where capacitor failure would not result in exposure to electric shock. Not for use in "series with mains" type applications.
