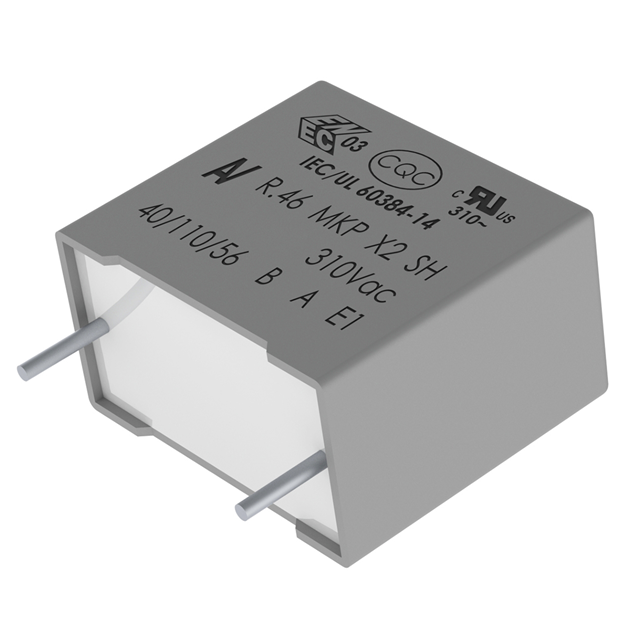

R463I233000H1K

Active

KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.033 ΜF, ± 10%, X2, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR46H, X2 Product Brief Datasheet +3

R463I233000H1K

Active

KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.033 ΜF, ± 10%, X2, THROUGH HOLE

Deep-Dive with AI

DocumentsR46H, X2 Product Brief Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R463I233000H1K

Applications	EMI, RFI Suppression
Capacitance	0.033 çF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V

R463I Series

Part	Capacitance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Dielectric Material	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
KEMET R463I333040N0M	0.33 µF	EMI RFI Suppression	0.575 in	14.6 mm	Radial	20 %	X2	-40 °C	110 °C	310 V	PC Pins	0.709 in	8.5 mm	18 mm	0.335 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in
KEMET R463I333040H2M	0.33 µF	EMI RFI Suppression			Radial	20 %	X2	-40 °C	125 °C	310 V	PC Pins	0.709 in	7.5 mm	18 mm	0.295 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in	18.6 mm	0.732 in
KEMET R463I322000L2M	0.22 µF	EMI RFI Suppression			Radial	20 %	X2	-40 °C	110 °C	310 V	PC Pins	0.709 in		18 mm	0.354 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in	12.6 mm	0.496 "	9 mm
KEMET R463I33305001K	0.33 µF	EMI RFI Suppression			Radial	10 %	X2	-40 °C	110 °C	310 V	PC Pins		13 mm	18 mm		Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in	12.1 mm	0.476 "		0.512 in	0.709 in
KEMET R463I315040M2M	0.15 ÁF	EMI RFI Suppression			Radial	20 %	X2	-40 °C	110 °C	310 V	PC Pins	0.709 in	6 mm	18 mm	0.236 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in	12.1 mm	0.476 "
KEMET R463I233000H1K	0.033 çF	EMI RFI Suppression	0.437 in	11.1 mm	Radial	10 %	X2	-40 °C	125 °C	310 V	PC Pins	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in
KEMET R463I26804001M	0.068 µF	EMI RFI Suppression	0.437 in	11.1 mm	Radial	20 %	X2	-40 °C	110 °C	310 V	PC Pins	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in
KEMET R463I322000M2M	0.22 µF	EMI RFI Suppression			Radial	20 %	X2	-40 °C	110 °C	310 V	PC Pins	0.709 in	7.5 mm	18 mm	0.295 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in
KEMET R463I322050L2K	0.22 µF	EMI RFI Suppression			Radial	10 %	X2	-40 °C	110 °C	310 V	PC Pins	0.709 in		18 mm	0.354 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in	12.6 mm	0.496 "	9 mm
KEMET R463I3220CKH1K	0.22 µF	EMI RFI Suppression	0.575 in	14.6 mm	Radial	10 %	X2	-40 °C	125 °C	310 V	PC Pins	0.709 in	8.5 mm	18 mm	0.335 in	Through Hole	Metallized Polypropylene (PP)	15 mm	0.591 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.50
		10	$ 0.34
		50	$ 0.27
		100	$ 0.22
		500	$ 0.17
		2000	$ 0.14
		4000	$ 0.13

Description

General part information

R463I Series

0.033 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

R463I233000H1K

Deep-Dive with AI

R463I233000H1K

Deep-Dive with AI

Technical Specifications

R463I Series

Pricing

Description

R463I Series

Documents

R46H, X2 Product Brief

Datasheet

R463I233000H1K Spec

Manufacturer Catalogue EN

Technical Data Sheet EN

R463I Series
