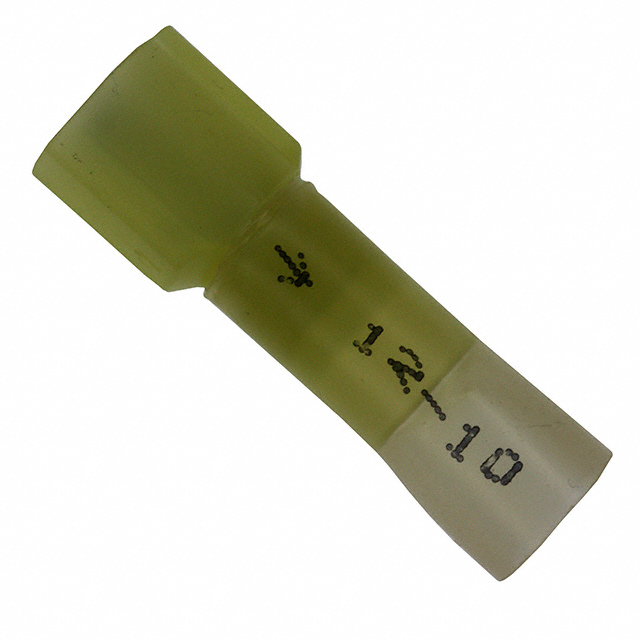

MNHU10-250DMIK

Active

FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)

Search across all available documentation for this part.

Active

FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)

Technical Specifications

Parameters and characteristics commom to parts in this series

3M SCOTCHLOK FEMALE DISCONNECT, HEAT SHRINK FULLY NYLON INSULATED BUTTED SEAM MNHU10-250DFIK, 12-10 AWG

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Terminal Type	Contact Material	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Gender	Features	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Width	Tab Width	Mounting Type	Color	Termination
3M MNHU10-250DFIK	4.19 mm	0.165 "	Standard	Brass	Tin	12 AWG	10 AWG	0.032 in	0.81 mm	Female	Butted Seam	30.48 mm	1.2 in	Fully Insulated Heat Shrink	6.35 mm	0.25 in	Free Hanging (In-Line)	Yellow	Crimp
3M MNHU10-250DMIK			Standard	Copper	Tin	12 AWG	10 AWG	0.032 in	0.81 mm	Male	Butted Seam	30.48 mm	1.2 in	Fully Insulated Heat Shrink	6.35 mm	0.25 in	Free Hanging (In-Line)	Yellow	Crimp
3M MNHU10-250DFIX-BOTTLE			Standard	Brass	Tin	12 AWG	10 AWG	0.032 in	0.81 mm	Female	Butted Seam	30.48 mm	1.2 in	Fully Insulated Heat Shrink	6.35 mm	0.25 in	Free Hanging (In-Line)	Yellow	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 10-12 AWG Crimp Connector Fully Insulated Heat Shrink
