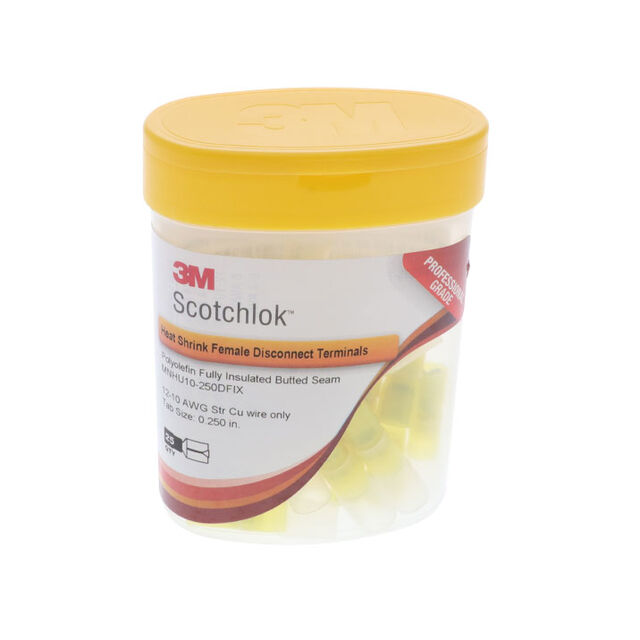

MNHU10-250DFIX-BOTTLE

Active

CONN QC RCPT 10-12AWG 0.250 25PC

Search across all available documentation for this part.

Active

CONN QC RCPT 10-12AWG 0.250 25PC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Fully Insulated Heat Shrink

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

3M SCOTCHLOK FEMALE DISCONNECT, HEAT SHRINK FULLY NYLON INSULATED BUTTED SEAM MNHU10-250DFIK, 12-10 AWG

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Terminal Type	Contact Material	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Gender	Features	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Width	Tab Width	Mounting Type	Color	Termination
3M MNHU10-250DFIK	4.19 mm	0.165 "	Standard	Brass	Tin	12 AWG	10 AWG	0.032 in	0.81 mm	Female	Butted Seam	30.48 mm	1.2 in	Fully Insulated Heat Shrink	6.35 mm	0.25 in	Free Hanging (In-Line)	Yellow	Crimp
3M MNHU10-250DMIK			Standard	Copper	Tin	12 AWG	10 AWG	0.032 in	0.81 mm	Male	Butted Seam	30.48 mm	1.2 in	Fully Insulated Heat Shrink	6.35 mm	0.25 in	Free Hanging (In-Line)	Yellow	Crimp
3M MNHU10-250DFIX-BOTTLE			Standard	Brass	Tin	12 AWG	10 AWG	0.032 in	0.81 mm	Female	Butted Seam	30.48 mm	1.2 in	Fully Insulated Heat Shrink	6.35 mm	0.25 in	Free Hanging (In-Line)	Yellow	Crimp
