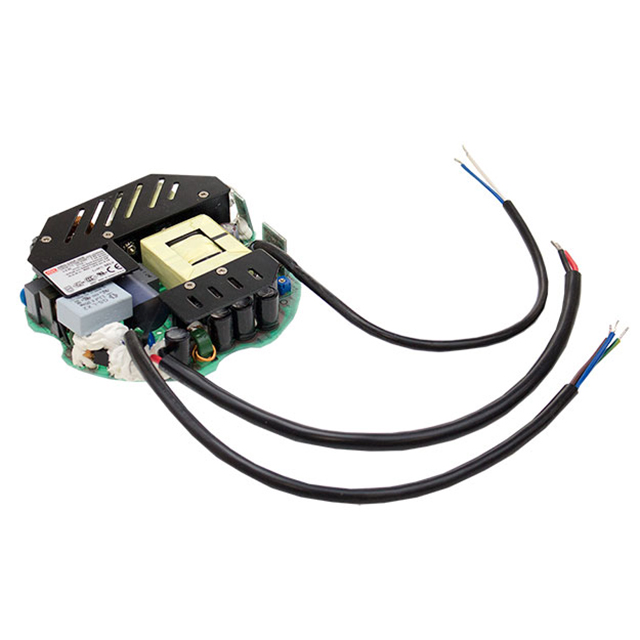

Specification	HBG-240P-48A

Approval Agency	CE, cURus, ENEC, CCC, CB
Current - Output (Max)	5 A
Efficiency	93 %
Features	OCP, SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	240 W
Size / Dimension Diameter	5.67 in
Size / Dimension Height	1.38 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	305 V
Voltage - Input (Min)	90 VAC
Voltage - Isolation	3750 VDC
Voltage - Output (Max)	48 V
Voltage - Output (Min)	28.8 V

HBG-240 Series

Part	Size / Dimension Height	Size / Dimension Diameter	Voltage - Isolation	Efficiency	Type	Features	Topology	Power (Watts)	Voltage - Input (Min)	Current - Output (Max)	Termination Style	Voltage - Output (Max)	Voltage - Output (Min)	Approval Agency	Dimming	Voltage - Input (Max)	Number of Outputs	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Ratings	Voltage - Output	Standard Number
MEAN WELL USA Inc. HBG-240P-36B	1.38 in	5.67 in	3750 VDC	92.5 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	241 W	90 VAC	6.7 A	Wire Leads	36 V	21.6 V	CB CCC CE cURus ENEC	Analog PWM	305 V	1	Chassis Mount
MEAN WELL USA Inc. HBG-240-24	2.72 in	7.54 in	3750 VDC	92.5 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	10 A	Wire Leads	24 V	14.4 V	CB CCC CE cURus ENEC		305 V	1	Chassis Mount	75 °C	-40 °C	IP67
MEAN WELL USA Inc. HBG-240P-36A	1.38 in	5.67 in	3750 VDC	92.5 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	241 W	90 VAC	6.7 A	Wire Leads	36 V	21.6 V	CB CCC CE cURus ENEC		305 V	1	Chassis Mount
MEAN WELL USA Inc. HBG-240-48AB	2.72 in	91.44 mm	3750 VDC	93 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	5 A	Wire Leads			CB CCC CE cURus EAC ENEC	Analog PWM	305 V	1	Chassis Mount	75 °C	-40 °C	IP65	48 V	UL 8750
MEAN WELL USA Inc. HBG-240-48B	2.72 in	7.54 in	3750 VDC	93 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	5 A	Wire Leads	48 V	28.8 V	CB CCC CE cURus ENEC	Analog PWM	305 V	1	Chassis Mount	75 °C	-40 °C	IP67
MEAN WELL USA Inc. HBG-240-24B	2.72 in	7.54 in	3750 VDC	92.5 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	10 A	Wire Leads	24 V	14.4 V	CB CCC CE cURus ENEC	Analog PWM	305 V	1	Chassis Mount	75 °C	-40 °C	IP67
MEAN WELL USA Inc. HBG-240-60	2.72 in	7.54 in	3750 VDC	93 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	4 A	Wire Leads	60 V	36 V	CB CCC CE cURus ENEC		305 V	1	Chassis Mount	75 °C	-40 °C	IP67
MEAN WELL USA Inc. HBG-240P-48A	1.38 in	5.67 in	3750 VDC	93 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	5 A	Wire Leads	48 V	28.8 V	CB CCC CE cURus ENEC		305 V	1	Chassis Mount
MEAN WELL USA Inc. HBG-240-60DA	2.72 in	91.44 mm	3750 VDC	93.5 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	4 A	Wire Leads			CB CCC CE cURus EAC ENEC	Analog PWM	305 V	1	Chassis Mount	75 °C	-40 °C	IP67	60 V	UL 8750
MEAN WELL USA Inc. HBG-240-36	2.72 in	7.54 in	3750 VDC	92.5 %	Constant Current Voltage	OCP OTP OVP SCP	AC DC Converter	240 W	90 VAC	6.7 A	Wire Leads	36 V	21.6 V	CB CCC CE cURus ENEC		305 V	1	Chassis Mount	75 °C	-40 °C	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HBG-240P-48A | Datasheet
