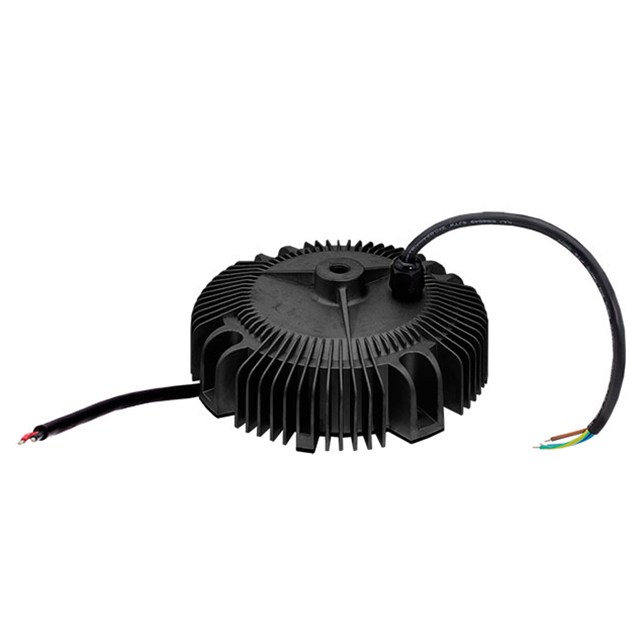

HBG-240-24

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 14.4-24V 10A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HBG-240-24

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 14.4-24V 10A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HBG-240-24

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	10 A
Efficiency	92.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Power (Watts)	240 W
Ratings	IP67
Size / Dimension [custom]	69 mm
Size / Dimension [custom]	2.72 in
Size / Dimension [diameter]	7.54 in
Size / Dimension [diameter]	191.5 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	24 V
Voltage - Output [Min]	14.4 V

HBG-240 Series

Part	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Approval Agency	Topology	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Features	Type	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Standard Number	Voltage - Output	Dimming
MEAN WELL USA Inc. HBG-240-24	Wire Leads	24 V	14.4 V	1	92.5 %	90 VAC	10 A	CB CCC CE cURus ENEC	AC DC Converter	69 mm	2.72 in	7.54 in	191.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP67	-40 °C	75 ░C	3750 V
MEAN WELL USA Inc. HBG-240P-36A	Wire Leads	36 V	21.6 V	1	92.5 %	90 VAC	6.7 A	CB CCC CE cURus ENEC	AC DC Converter			5.67 "	144 mm	305 VAC	241 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage				3750 V	35 mm	1.38 in
MEAN WELL USA Inc. HBG-240-60	Wire Leads	60 VDC	36 V	1	93 %	90 VAC	4 A	CB CCC CE cURus ENEC	AC DC Converter	69 mm	2.72 in	7.54 in	191.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP67	-40 °C	75 ░C	3750 V
MEAN WELL USA Inc. HBG-240P-48A	Wire Leads	48 V	28.8 V	1	93 %	90 VAC	5 A	CB CCC CE cURus ENEC	AC DC Converter			5.67 "	144 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage				3750 V	35 mm	1.38 in
MEAN WELL USA Inc. HBG-240-60DA	Wire Leads			1	93.5 %	90 VAC	4 A	CB CCC CE cURus EAC ENEC	AC DC Converter			3.6 in	91.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP67	-40 °C	75 ░C	3750 V	69 mm	2.72 in	UL 8750	60 V	Analog PWM
MEAN WELL USA Inc. HBG-240-36	Wire Leads	36 V	21.6 V	1	92.5 %	90 VAC	6.7 A	CB CCC CE cURus ENEC	AC DC Converter	69 mm	2.72 in	7.54 in	191.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP67	-40 °C	75 ░C	3750 V
MEAN WELL USA Inc. HBG-240-48DA	Wire Leads	24 V	14.4 V	1	92.5 %	90 VAC	10 A	CB CCC CE cURus ENEC	AC DC Converter	69 mm	2.72 in	7.54 in	191.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP65	-40 °C	75 ░C	3750 V			UL 8750		Analog PWM
MEAN WELL USA Inc. HBG-240P-48B	Wire Leads	48 V	28.8 V	1	93 %	90 VAC	5 A	CB CCC CE cURus ENEC	AC DC Converter			5.67 "	144 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage				3750 V	35 mm	1.38 in			Analog PWM
MEAN WELL USA Inc. HBG-240-48A	Wire Leads	48 V	28.8 V	1	93 %	90 VAC	5 A	CB CCC CE cURus ENEC	AC DC Converter	69 mm	2.72 in	7.54 in	191.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP65	-40 °C	75 ░C	3750 V
MEAN WELL USA Inc. HBG-240-60B	Wire Leads	60 VDC	36 V	1	93 %	90 VAC	4 A	CB CCC CE cURus ENEC	AC DC Converter	69 mm	2.72 in	7.54 in	191.5 mm	305 VAC	240 W	Chassis Mount	OCP OTP OVP SCP	Constant Current Voltage	IP67	-40 °C	75 ░C	3750 V					Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	8	$ 84.96

Description

General part information

HBG-240 Series

10A 14.4 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
