Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT5105L | PT5105 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A | 1 A |
| Efficiency | 90 % | 90 % |
| Features | OTP, OCP | OTP, OCP |
| Mounting Type | Surface Mount | Through Hole, Right Angle, Surface Mount, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3-SMD Module | 3-SIP Module, 3-SMD Module |
| Power (Watts) | 6 W | 6 W |
| Size / Dimension | - | 9.7 - 25.9 mm |
| Size / Dimension | - | 9.7 - 25.9 mm |
| Size / Dimension [x] | 25.9 mm | 25.4 - 25.9 mm |
| Size / Dimension [x] | 1.02 in | 1 - 1.02 " |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [y] | 25.4 mm | 0.38 - 25.4 " |
| Size / Dimension [z] | 0.38 " | 0.38 - 1.02 " |
| Size / Dimension [z] | 9.7 mm | 9.7 mm |
| Type | Linear Regulator Replacement | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 38 V | 38 V |
| Voltage - Input (Min) [Min] | 10.5 V | 10.5 V |
| Voltage - Output 1 | 6.5 V | 6.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|

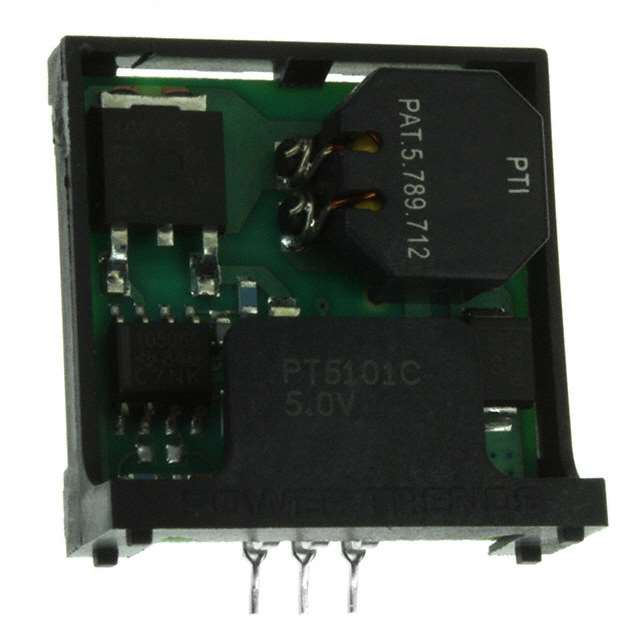

PT5105 Series
DC DC CONVERTER 6.5V 6W
| Part | Mounting Type | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Applications | Voltage - Input (Min) [Min] | Number of Outputs | Current - Output (Max) [Max] | Features | Type | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments PT5105A | Through Hole, Right Angle | 3-SIP Module | 0.38 " | 25.4 mm | 1 " | 25.9 mm | 9.7 mm | 1.02 " | -40 °C | 85 °C | 90 % | ITE (Commercial) | 10.5 V | 1 | 1 A | OCP, OTP | Linear Regulator Replacement | 38 V | 6 W | 6.5 V | ||
Texas Instruments PT5105C | Surface Mount | 3-SMD Module | 0.38 " | 25.4 mm | 1 " | 25.9 mm | 9.7 mm | 1.02 " | -40 °C | 85 °C | 90 % | ITE (Commercial) | 10.5 V | 1 | 1 A | OCP, OTP | Linear Regulator Replacement | 38 V | 6 W | 6.5 V | ||
Texas Instruments PT5105L | Surface Mount | 3-SMD Module | 0.38 " | 25.9 mm | 1.02 in | 25.4 mm | -40 °C | 85 °C | 90 % | ITE (Commercial) | 10.5 V | 1 | 1 A | OCP, OTP | Linear Regulator Replacement | 38 V | 6 W | 6.5 V | 25.4 mm | 9.7 mm | ||
Texas Instruments PT5105N | Through Hole | 3-SIP Module | 1.02 " | 25.4 mm | 1 " | 9.7 mm | 25.9 mm | 0.38 " | -40 °C | 85 °C | 90 % | ITE (Commercial) | 10.5 V | 1 | 1 A | OCP, OTP | Linear Regulator Replacement | 38 V | 6 W | 6.5 V |
Description
General part information
PT5105 Series
Linear Regulator Replacement DC DC Converter 1 Output 6.5V 1A 10.5V - 38V Input
