45110-010030-3749/10-D-3

Active

3M (TC)

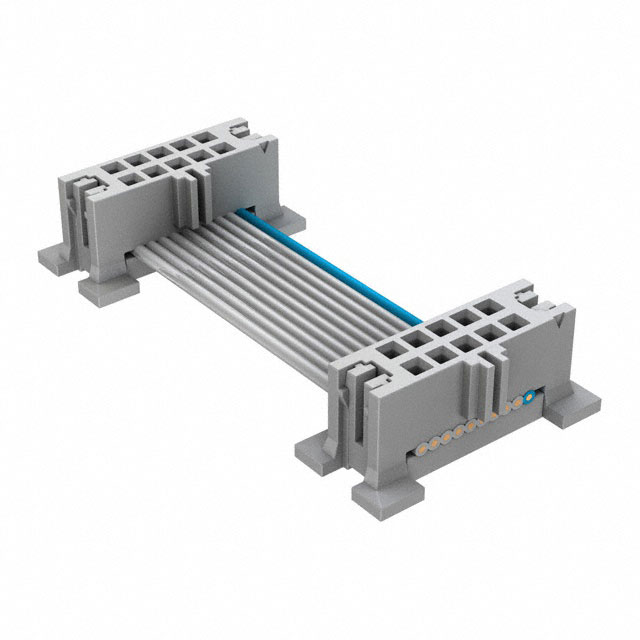

DBL END CBL ASY 10POS SKT 3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 451, 452 Socket/Header Series +1

45110-010030-3749/10-D-3

Active

3M (TC)

DBL END CBL ASY 10POS SKT 3"

Deep-Dive with AI

DocumentsDatasheet 451, 452 Socket/Header Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45110-010030-3749/10-D-3

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	3 "
Length	76.2 mm
Length	0.25 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

45110 Series

Part	Length [x]	Length [x]	Number of Positions	Pitch - Cable [x]	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Rows	Shielding	Length	Length	Length	Row Spacing	Row Spacing	Mounting Type	Contact Type	Wire Type	Wire Gauge	Pitch [x]	Pitch [x]	Length
3M (TC) 45110-010030-7700/10-A-24	2 '	609.6 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Cable	Gold	2	Unshielded
3M (TC) 45110-010030-7700/10-E-36	3 ft	914.4 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket Reversed	Gold	2	Unshielded
3M (TC) 45110-010030-3749/10-S-6			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Cable	Gold	2	Unshielded	152.4 mm	6 "	0.5 '
3M (TC) 45110-010030-7700/10-H-06			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded	152.4 mm	6 "	0.5 '
3M (TC) 45110-000030			10					IDC	Feed Through	0.76 Ám	30 Áin	Receptacle	Gold	2					1.27 mm	0.05 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	30 AWG	0.05 in	1.27 mm
3M (TC) 45110-010030-7700/10-G-24	2 '	609.6 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded
3M (TC) 45110-010030-7700/10-F-12			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket Reversed	Gold	2	Unshielded	304.8 mm											1 ft
3M (TC) 45110-010030-7700/10-C-12			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded	304.8 mm											1 ft
3M (TC) 45110-010030-7700/10-B-24	2 '	609.6 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Cable	Gold	2	Unshielded
3M (TC) 45110-010030-3749/10-D-3			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded	76.2 mm	3 "										0.25 ft
