45110-010030-7700/10-H-06

Unknown

3M (TC)

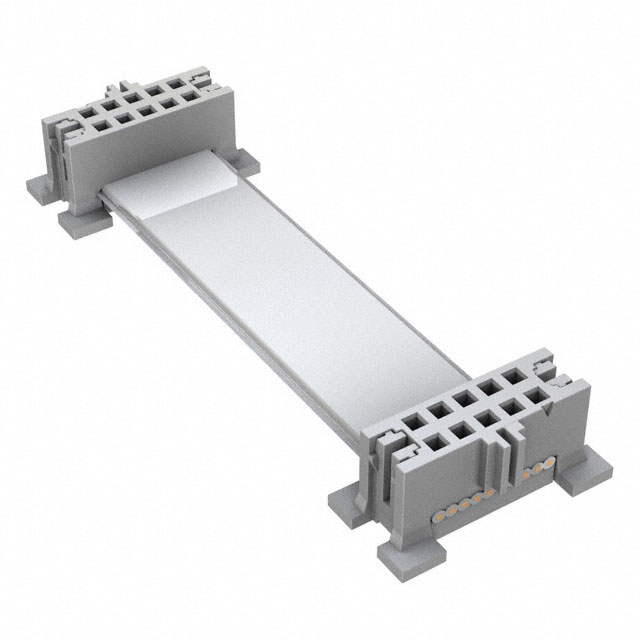

CABLE ASSY 10 POS 6" PINOUT-H

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Socket/Header Series Datasheet +1

45110-010030-7700/10-H-06

Unknown

3M (TC)

CABLE ASSY 10 POS 6" PINOUT-H

Deep-Dive with AI

Documents451, 452 Socket/Header Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45110-010030-7700/10-H-06

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

45110 Series

Part	Length [x]	Length [x]	Number of Positions	Pitch - Cable [x]	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Rows	Shielding	Length	Length	Length	Row Spacing	Row Spacing	Mounting Type	Contact Type	Wire Type	Wire Gauge	Pitch [x]	Pitch [x]	Length
3M (TC) 45110-010030-7700/10-A-24	2 '	609.6 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Cable	Gold	2	Unshielded
3M (TC) 45110-010030-7700/10-E-36	3 ft	914.4 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket Reversed	Gold	2	Unshielded
3M (TC) 45110-010030-3749/10-S-6			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Cable	Gold	2	Unshielded	152.4 mm	6 "	0.5 '
3M (TC) 45110-010030-7700/10-H-06			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded	152.4 mm	6 "	0.5 '
3M (TC) 45110-000030			10					IDC	Feed Through	0.76 Ám	30 Áin	Receptacle	Gold	2					1.27 mm	0.05 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	30 AWG	0.05 in	1.27 mm
3M (TC) 45110-010030-7700/10-G-24	2 '	609.6 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded
3M (TC) 45110-010030-7700/10-F-12			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket Reversed	Gold	2	Unshielded	304.8 mm											1 ft
3M (TC) 45110-010030-7700/10-C-12			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded	304.8 mm											1 ft
3M (TC) 45110-010030-7700/10-B-24	2 '	609.6 mm	10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Cable	Gold	2	Unshielded
3M (TC) 45110-010030-3749/10-D-3			10	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	Polarizing Key	0.76 Ám	30 Áin	Socket to Socket	Gold	2	Unshielded	76.2 mm	3 "										0.25 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.61
		10	$ 8.15
		25	$ 7.36
		50	$ 6.83
		100	$ 6.34
		250	$ 5.77
		500	$ 5.39
		1000	$ 5.04

Description

General part information

45110 Series

10 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

451, 452 Socket/Header Series

Datasheet

451 Ribbon Cable Socket Series Drawing

Datasheet
