E6D20065H

Obsolete

Wolfspeed

DIODE SIL CARB 650V 59A TO2472

Search across all available documentation for this part.

Obsolete

Wolfspeed

DIODE SIL CARB 650V 59A TO2472

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

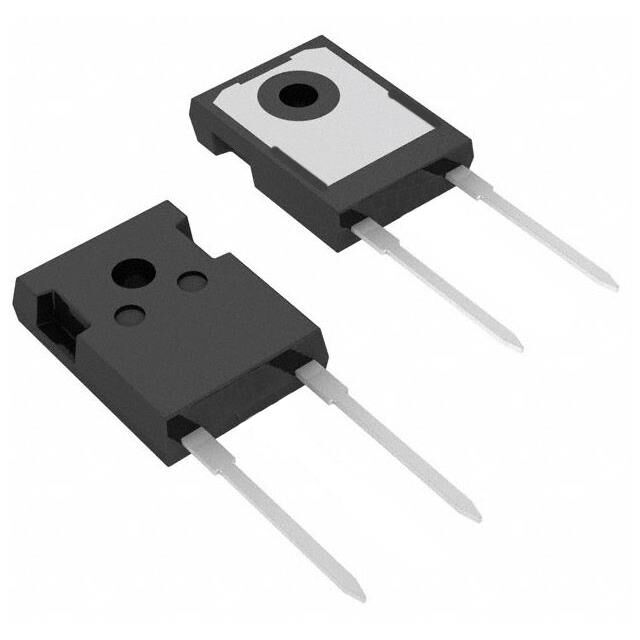

Diode 650 V 59A Through Hole TO-247-2

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	E6D20065H	E6D20065 Series

Capacitance @ Vr, F	1277 pF	1277 pF
Current - Average Rectified (Io)	59 A	59 - 68 A
Current - Average Rectified (Io) (per Diode)	-	34 A
Current - Reverse Leakage @ Vr	75 µA	50 - 75 µA
Diode Configuration	-	1 Pair Common Cathode
Grade	Automotive	Automotive
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-55 C	-55 C
Package / Case	TO-247-2	TO-247-2, TO-220-2, TO-247-3, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Qualification	AEC-Q101	AEC-Q101
Reverse Recovery Time (trr)	0 ns	0 ns
Speed	No Recovery Time	No Recovery Time
Supplier Device Package	TO-247-2	TO-247-2, TO-220-2, TO-247-3, TO-263-2
Technology	SiC (Silicon Carbide) Schottky	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V	650 V
Voltage - Forward (Vf) (Max) @ If	1.5 V	1.5 V

DIODE SIL CARB 650V 59A TO2472

Part	Technology	Speed	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Current - Average Rectified (Io)	Mounting Type	Package / Case	Grade	Qualification	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Wolfspeed E6D20065H	SiC (Silicon Carbide) Schottky	No Recovery Time	TO-247-2	175 ░C	-55 C	1277 pF	59 A	Through Hole	TO-247-2	Automotive	AEC-Q101	1.5 V	650 V	75 µA
Wolfspeed E6D20065A	SiC (Silicon Carbide) Schottky	No Recovery Time	TO-220-2	175 ░C	-55 C	1277 pF	68 A	Through Hole	TO-220-2	Automotive	AEC-Q101	1.5 V	650 V	75 µA
Wolfspeed E6D20065D	SiC (Silicon Carbide) Schottky	No Recovery Time	TO-247-3	175 ░C	-55 C			Through Hole	TO-247-3			1.5 V	650 V	50 µA	1 Pair Common Cathode	34 A
Wolfspeed E6D20065G	SiC (Silicon Carbide) Schottky	No Recovery Time	TO-263-2	175 ░C	-55 C	1277 pF	68 A	Surface Mount	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB			1.5 V	650 V	75 µA
