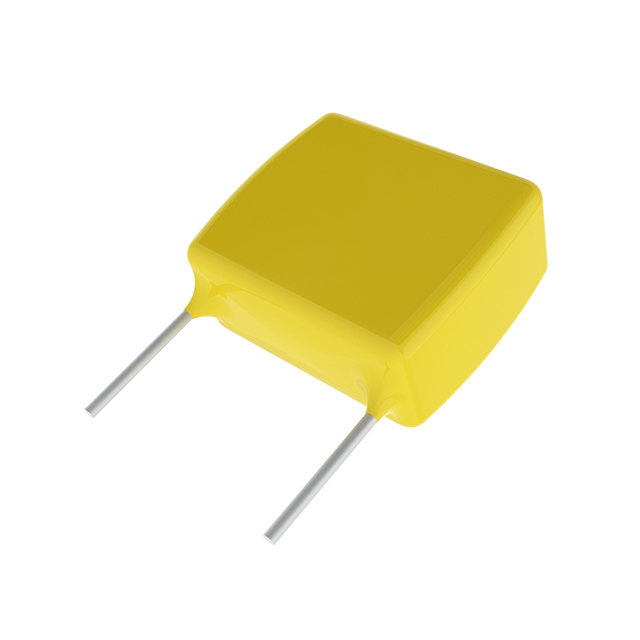

C320C185J5N5TA

Active

KEMET

CAP CER 1.8UF 50V X8L RADIAL

C320C185J5N5TA

Active

KEMET

CAP CER 1.8UF 50V X8L RADIAL

Description Specifications Series Pricing CAD Documents

Description

General part information

C320C Series

1.8 µF ±5% 50V Ceramic Capacitor X8L Radial

Technical Specifications

Parameters and characteristics for this part

Specification	C320C185J5N5TA

Applications	General Purpose
Capacitance	1.8 µF
Features	High Temperature
Height - Seated (Max)	0.29 in
Lead Spacing	0.1 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	0.2 in
Size / Dimension Width	0.125 in
Temperature Coefficient	X8L
Tolerance	5 %
Voltage - Rated	50 V

C320C Series

...

Part	Temperature Coefficient	Lead Style	Capacitance	Size / Dimension Length	Size / Dimension Width	Height - Seated (Max)	Tolerance	Mounting Type	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Lead Spacing	Features	Package / Case	Voltage - Rated
KEMET C320C393F3G5TA7301	C0G NP0	Straight	0.039 µF	0.2 in	0.125 in	0.29 in	1 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	25 VAC
KEMET C320C912K2G5TA	C0G NP0	Straight	9100 pF	0.2 in	0.125 in	0.29 in	10 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	200 VDC
KEMET C320C183G5G5TA7301	C0G NP0	Straight	0.018 µF	0.2 in	0.125 in	0.29 in	2 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	50 V
KEMET C320C472K3G5TA7301	C0G NP0	Straight	4700 pF	0.2 in	0.125 in	0.29 in	10 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	25 VAC
KEMET C320C125K5N5TATR	X8L	Straight	1.2 µF	0.2 in	0.125 in	0.29 in	10 %	Through Hole	General Purpose	150 °C	-55 °C	0.1 in	High Temperature	Radial	50 V
KEMET C320C123J1G5TA7301	C0G NP0	Straight	0.012 µF	0.2 in	0.125 in	0.29 in	5 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	100 VAC/DC
KEMET C320C131F3G5TA	C0G NP0	Straight	130 pF	0.2 in	0.125 in	0.29 in	1 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	25 VAC
KEMET C320C432F2G5TA7301	C0G NP0	Straight	4300 pF	0.2 in	0.125 in	0.29 in	1 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	200 VDC
KEMET C320C185J5N5TA	X8L	Straight	1.8 µF	0.2 in	0.125 in	0.29 in	5 %	Through Hole	General Purpose	150 °C	-55 °C	0.1 in	High Temperature	Radial	50 V
KEMET C320C562K2G5TA	C0G NP0	Straight	5600 pF	0.2 in	0.125 in	0.29 in	10 %	Through Hole	General Purpose	125 °C	-55 °C	0.1 in	Low ESL	Radial	200 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

C320C185J5N5TA Spec

C320C185J5N5TA | Datasheet
