C320C432F2G5TA7301

Active

KEMET

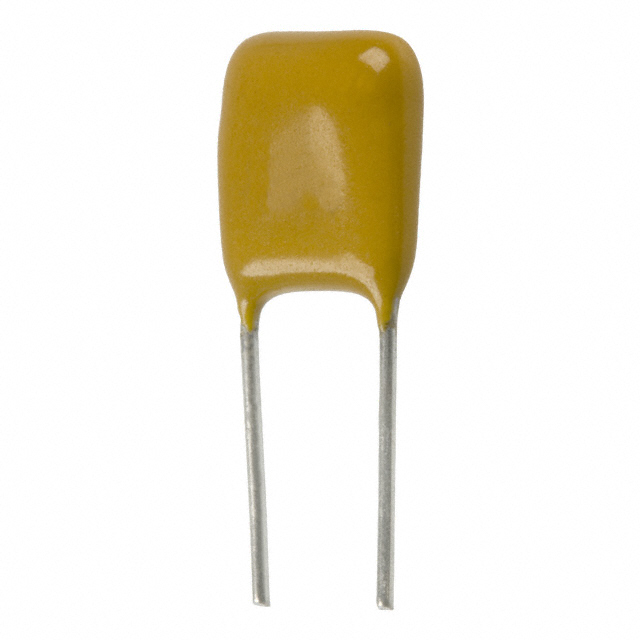

CAP CER 4300PF 200V C0G/NP0 RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C320C432F2G5TA7301

Active

KEMET

CAP CER 4300PF 200V C0G/NP0 RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C320C432F2G5TA7301

Applications	General Purpose
Capacitance	4300 pF
Features	Low ESL
Height - Seated (Max) [Max]	7.36 mm
Height - Seated (Max) [Max]	0.29 "
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.2 in
Size / Dimension [x]	5.08 mm
Size / Dimension [y]	0.125 in
Size / Dimension [y]	3.18 mm
Temperature Coefficient	NP0, C0G
Tolerance	1 %
Voltage - Rated	200 V

C320C Series

...

Part	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Applications	Temperature Coefficient	Features	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lead Style	Capacitance
KEMET C320C393F3G5TA7301	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	25 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	0.039 µF
KEMET C320C912K2G5TA	10 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	200 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	9100 pF
KEMET C320C183G5G5TA7301	2 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	50 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	0.018 µF
KEMET C320C472K3G5TA7301	10 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	25 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	4700 pF
KEMET C320C123J1G5TA7301	5 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	100 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	0.012 µF
KEMET C320C131F3G5TA	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	25 VDC	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	130 pF
KEMET C320C432F2G5TA7301	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	200 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	4300 pF
KEMET C320C185J5N5TA	5 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	150 °C	0.1 in	2.54 mm	50 VDC	General Purpose	X8L	High Temperature	Through Hole	7.36 mm	0.29 "	Radial	Straight	1.8 µF
KEMET C320C562K2G5TA	10 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	200 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	5600 pF
KEMET C320C120FAG5TA7301	1 %	0.2 in	0.125 in	5.08 mm	3.18 mm	-55 °C	125 °C	0.1 in	2.54 mm	250 V	General Purpose	C0G NP0	Low ESL	Through Hole	7.36 mm	0.29 "	Radial	Straight	12 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.97

Description

General part information

C320C Series

4300 pF ±1% 200V Ceramic Capacitor C0G, NP0 Radial
