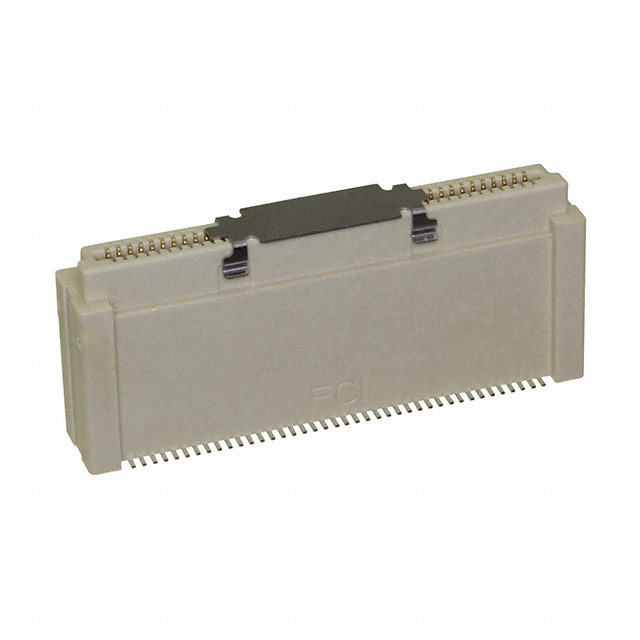

10144517-084802LF

Active

Amphenol ICC (FCI)

CONN RCPT 80POS SMD GOLD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	10144517-084802LF

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Pick and Place, Board Guide
Mated Stacking Heights	19 mm, 17 mm, 18 mm, 20 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Mated Stacking Heights	Height Above Board	Height Above Board	Features	Connector Type	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Height Above Board
Amphenol ICC (FCI) 10144517-101802LF	Gold	0.8 mm	0.031 in	100	5 mm 6 mm 7 mm 8 mm	3.7 mm	0.146 in	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm
Amphenol ICC (FCI) 10144517-041802LF	Gold	0.8 mm	0.031 in	40	5 mm 6 mm 7 mm 8 mm	3.7 mm	0.146 in	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm
Amphenol ICC (FCI) 10144517-084802LF	Gold	0.8 mm	0.031 in	80	17 mm 18 mm 19 mm 20 mm			Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm
Amphenol ICC (FCI) 10144517-104802LF	Gold	0.8 mm	0.031 in	100	17 mm 18 mm 19 mm 20 mm			Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm
Amphenol ICC (FCI) 10144517-062802LF	Gold	0.8 mm	0.031 in	60	9 mm 10 mm 11 mm 12 mm			Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm	0.303 in	7.7 mm
Amphenol ICC (FCI) 10144517-082802LF	Gold	0.8 mm	0.031 in	80	9 mm 10 mm 11 mm 12 mm			Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm	0.303 in	7.7 mm
Amphenol ICC (FCI) 10144517-063802LF	Gold	0.8 mm	0.031 in	60	13 mm 14 mm 15 mm 16 mm	0.461 in		Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	2	8 çin	0.203 çm			11.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
