10144517-063802LF
ActiveAmphenol ICC (FCI)

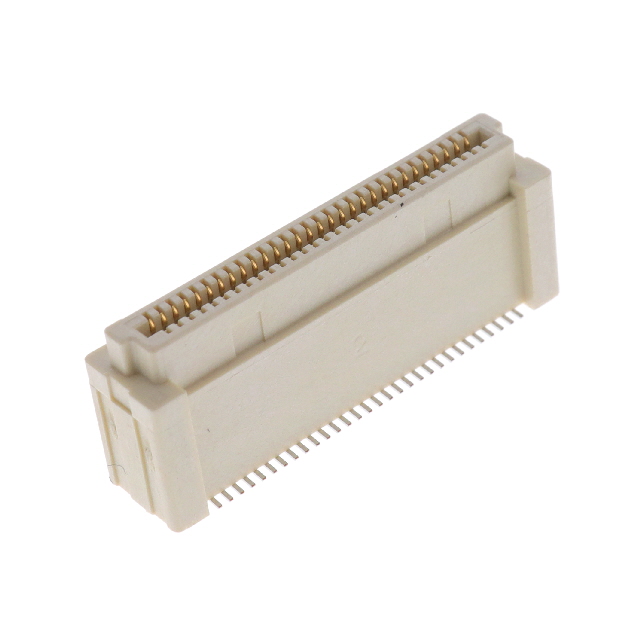

CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10144517-063802LF
ActiveAmphenol ICC (FCI)
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144517-063802LF |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.461 in |
| Height Above Board | 11.7 mm |
| Mated Stacking Heights | 15 mm, 13 mm, 14 mm, 16 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
10144517 Series
| Part | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions | Mated Stacking Heights | Height Above Board | Height Above Board | Features | Connector Type | Mounting Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Height Above Board [z] | Height Above Board [z] | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 100 | 5 mm 6 mm 7 mm 8 mm | 3.7 mm | 0.146 in | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | |||
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 40 | 5 mm 6 mm 7 mm 8 mm | 3.7 mm | 0.146 in | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | |||
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 80 | 17 mm 18 mm 19 mm 20 mm | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | |||||
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 100 | 17 mm 18 mm 19 mm 20 mm | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | |||||
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 60 | 9 mm 10 mm 11 mm 12 mm | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | 0.303 in | 7.7 mm | |||
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 80 | 9 mm 10 mm 11 mm 12 mm | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | 0.303 in | 7.7 mm | |||
Amphenol ICC (FCI) | Gold | 0.8 mm | 0.031 in | 60 | 13 mm 14 mm 15 mm 16 mm | 0.461 in | Board Guide Pick and Place | Receptacle Outer Shroud Contacts | Surface Mount | 2 | 8 çin | 0.203 çm | 11.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.45 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.14 | |||
| Tape & Reel (TR) | 300 | $ 1.01 | ||
| 600 | $ 0.94 | |||
| 900 | $ 0.90 | |||
| 1500 | $ 0.85 | |||
| 2100 | $ 0.82 | |||
| 3000 | $ 0.80 | |||
| 7500 | $ 0.73 | |||
Description
General part information
10144517 Series
60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
