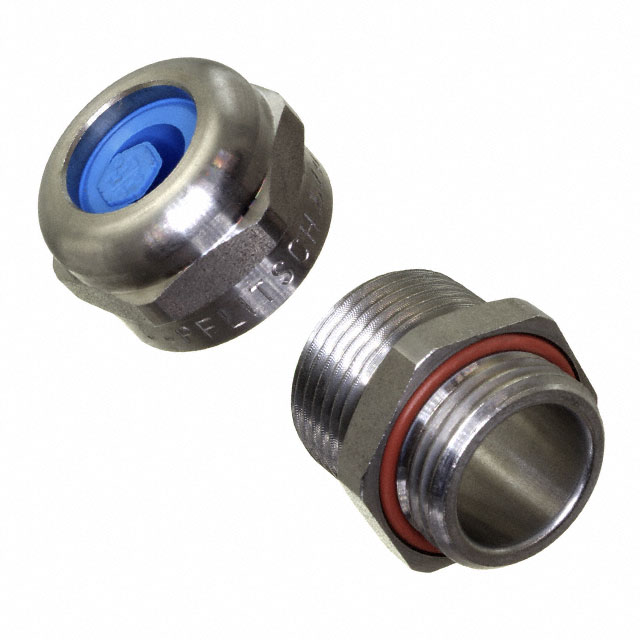

96572.7

Active

Pflitsch

CABLE FEEDTHR 8.89-13.97MM M20

Search across all available documentation for this part.

Active

Pflitsch

CABLE FEEDTHR 8.89-13.97MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	96572.7

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Stainless Steel
Operating Temperature [Max]	500 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.55 in
Outside Cable Diameter (Max) [Max] [diameter]	13.97 mm
Outside Cable Diameter (Min) [Min] [diameter]	8.89 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.35 "
Panel Hole Size	20.1 mm
Panel Hole Size	0.79 in
Thread Length	0.26 in
Thread Length	6.6 mm
Thread Size	M20x1.5
Type	Cable Feedthrough

Part	Material	Ingress Protection	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Size	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Pflitsch 96572.1	Polyamide (PA) Nylon	IP68 - Dust Tight Waterproof; NEMA 4X	Black	8.89 mm	0.35 "	0.55 in	13.97 mm	Cable Feedthrough	M20x1.5	20.1 mm	0.79 in	0.26 in	6.6 mm	100 °C	-20 C
Pflitsch 96572.7/15	Stainless Steel		Silver					Cable Feedthrough	M20x1.5	20 mm	0.787 in			500 °C	-60 °C	Sealing Ring	5 mm	0.197 in	14 mm	0.551 "
Pflitsch 96572.6/15	Brass Nickel Plated	IP68 - Dust Tight Waterproof; NEMA 4X	Silver	8.89 mm	0.35 "	0.55 in	13.97 mm	Cable Feedthrough	M20x1.5	20.1 mm	0.79 in			300 °C	-40 °C	Sealing Ring
Pflitsch 96572.7	Stainless Steel	IP68 - Dust Tight Waterproof; NEMA 4X	Silver	8.89 mm	0.35 "	0.55 in	13.97 mm	Cable Feedthrough	M20x1.5	20.1 mm	0.79 in	0.26 in	6.6 mm	500 °C	-60 °C	Sealing Ring
Pflitsch 96572.0	Polyamide (PA) Nylon	IP68 - Dust Tight Waterproof; NEMA 4X	Light Gray	8.89 mm	0.35 "	0.55 in	13.97 mm	Cable Feedthrough	M20x1.5	20.1 mm	0.79 in	0.26 in	6.6 mm	100 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Feedthrough Stainless Steel M20x1.5 Silver
