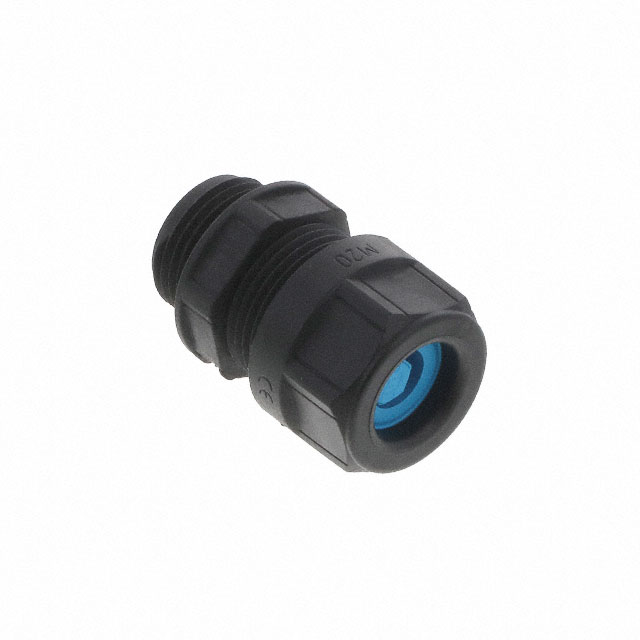

Specification	96572.1

Color	Black
Ingress Protection Description	Waterproof; NEMA 4X, Dust Tight
Ingress Protection IP Rating	IP68
Material	Nylon, Polyamide (PA)
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.55 in
Outside Cable Diameter (Min)	0.35 in
Panel Hole Size	0.79 in
Thread Diameter	20 mm
Thread Length	0.26 in
Thread Pitch	1.5 mm
Type	Cable Feedthrough

96572 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material	Outside Cable Diameter (Max)	Thread Length	Thread Diameter	Thread Pitch	Type	Outside Cable Diameter (Min)	Color	Panel Hole Size	Ingress Protection Description	Ingress Protection IP Rating	Includes
Pflitsch 96572.1	100 °C	-20 °C	Nylon Polyamide (PA)	0.55 in	0.26 in	20 mm	1.5 mm	Cable Feedthrough	0.35 in	Black	0.79 in	Dust Tight Waterproof; NEMA 4X	IP68
Pflitsch 96572.7/15	500 °C	-60 °C	Stainless Steel	0.551 in		20 mm	1.5 mm	Cable Feedthrough	0.197 in	Silver	0.787 in			Sealing Ring
Pflitsch 96572.6/15	300 °C	-40 °C	Brass Nickel Plated	0.55 in		20 mm	1.5 mm	Cable Feedthrough	0.35 in	Silver	0.79 in	Dust Tight Waterproof; NEMA 4X	IP68	Sealing Ring
Pflitsch 96572.7	500 °C	-60 °C	Stainless Steel	0.55 in	0.26 in	20 mm	1.5 mm	Cable Feedthrough	0.35 in	Silver	0.79 in	Dust Tight Waterproof; NEMA 4X	IP68	Sealing Ring
Pflitsch 96572.0	100 °C	-20 °C	Nylon Polyamide (PA)	0.55 in	0.26 in	20 mm	1.5 mm	Cable Feedthrough	0.35 in	Light Gray	0.79 in	Dust Tight Waterproof; NEMA 4X	IP68
