TGH-0380-01

Active

t-Global Technology

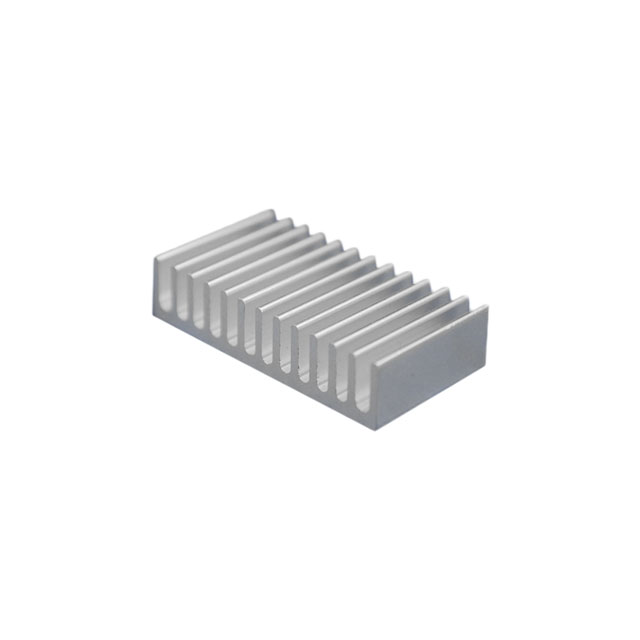

ALUMINIUM HEAT SINK 38X20MM

Search across all available documentation for this part.

Active

t-Global Technology

ALUMINIUM HEAT SINK 38X20MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 1.34

General part information

Heat Sink Aluminum Top Mount

Technical documentation and resources

Specification	TGH-0380-01	TGH-0380 Series

Attachment Method	-	Push Pin
Fin Height [z]	0.354 in	0.354 in
Fin Height [z]	9 mm	9 mm
Length	-	1.496 in
Length	-	38 mm
Length [x]	0.787 "	0.787 "
Length [x]	20 mm	20 mm
Material	Aluminum	Aluminum
Material Finish	Clean Anodized	Black Anodized, Clean Anodized
Shape	Rectangular, Fins	Square, Fins, Rectangular, Fins, Pin Fins
Type	Top Mount	Top Mount
Width [y]	38 mm	38 mm
Width [y]	1.496 in	1.496 in

Part	Shape	Type	Material	Material Finish	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Length	Length	Length [x]	Length [x]	Attachment Method
t-Global Technology TGH-0380-03	Fins, Square	Top Mount	Aluminum	Black Anodized	0.354 in	9 mm	38 mm	1.496 in	1.496 in	38 mm
t-Global Technology TGH-0380-01	Rectangular, Fins	Top Mount	Aluminum	Clean Anodized	0.354 in	9 mm	38 mm	1.496 in			0.787 "	20 mm
t-Global Technology TGH-0380-05	Pin Fins, Square	Top Mount	Aluminum	Clean Anodized			38 mm	1.496 in	1.496 in	38 mm			Push Pin
