TGH-0380-05

Active

t-Global Technology

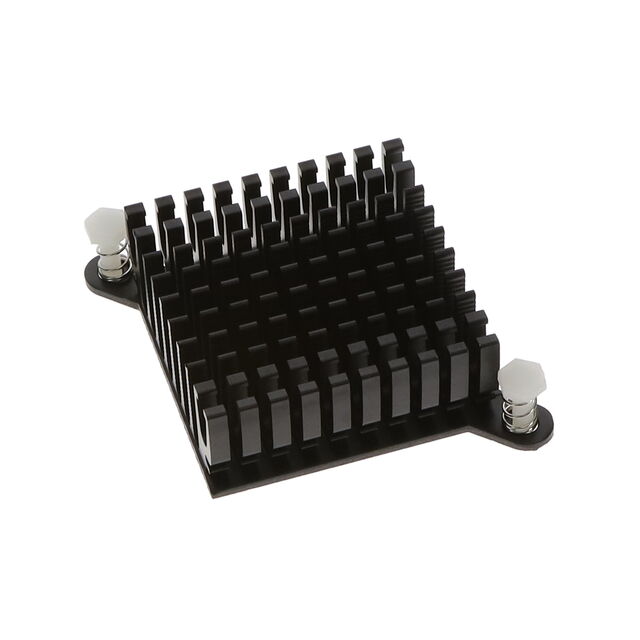

ALUMINIUM HEAT SINK 38X38MM

Search across all available documentation for this part.

Active

t-Global Technology

ALUMINIUM HEAT SINK 38X38MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TGH-0380-05	TGH-0380 Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.354 in
Fin Height	-	9 mm
Length	1.496 in	1.496 in
Length	38 mm	38 mm
Length	-	0.787 "
Length	-	20 mm
Material	Aluminum	Aluminum
Material Finish	Clean Anodized	Black Anodized, Clean Anodized
Shape	Square, Pin Fins	Square, Fins, Rectangular, Fins, Pin Fins
Type	Top Mount	Top Mount
Width [y]	38 mm	38 mm
Width [y]	1.496 in	1.496 in

ALUMINIUM HEAT SINK 38X38MM

Part	Shape	Type	Material	Material Finish	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Length	Length	Length [x]	Length [x]	Attachment Method
t-Global Technology TGH-0380-03	Fins, Square	Top Mount	Aluminum	Black Anodized	0.354 in	9 mm	38 mm	1.496 in	1.496 in	38 mm
t-Global Technology TGH-0380-01	Rectangular, Fins	Top Mount	Aluminum	Clean Anodized	0.354 in	9 mm	38 mm	1.496 in			0.787 "	20 mm
t-Global Technology TGH-0380-05	Pin Fins, Square	Top Mount	Aluminum	Clean Anodized			38 mm	1.496 in	1.496 in	38 mm			Push Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Aluminum Top Mount
