IDH10SG60CXKSA2
ActiveSILICON CARBIDE SCHOTTKY DIODE, THINQ GEN III SERIES, SINGLE, 600 V, 10 A, 16 NC, TO-220
Deep-Dive with AI
Search across all available documentation for this part.
IDH10SG60CXKSA2
ActiveSILICON CARBIDE SCHOTTKY DIODE, THINQ GEN III SERIES, SINGLE, 600 V, 10 A, 16 NC, TO-220
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IDH10SG60CXKSA2 |
|---|---|
| Capacitance @ Vr, F | 290 pF |
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 90 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |

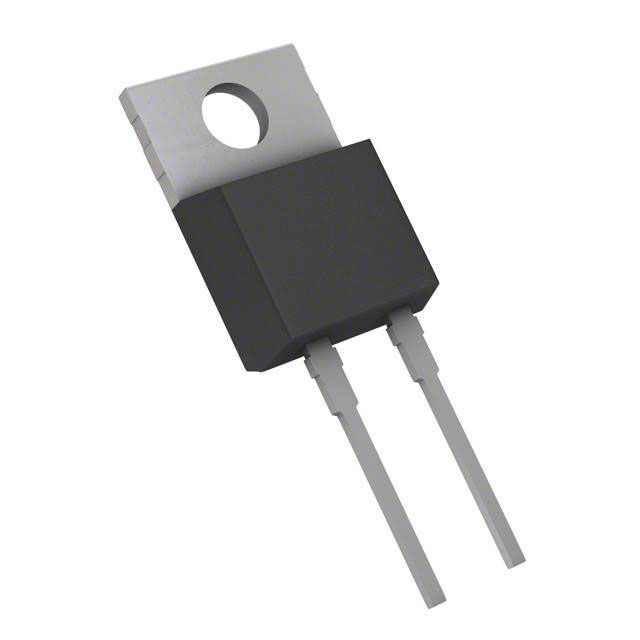

| Package / Case | TO-220-2 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | PG-TO220-2-1 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IDH10SG60 Series
Infineon's CoolSiC™ Schottky diodes 600V G3 feature the industry’s lowest device capacitance for any given current rating, which further enhances overall system efficiency, especially at higher switching frequencies and under low load conditions. The generation 3 is based on the same technology platform as generation 2 with the introduction, at package level, of the so called diffusion soldering.
