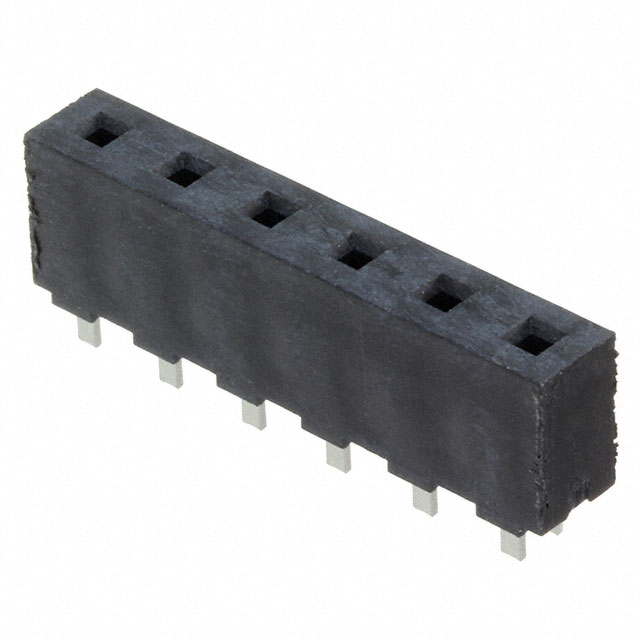

HPF-06-01-T-S

Active

Samtec Inc.

PCB RECEPTACLE, POWER TERMINAL, BOARD-TO-BOARD, 5.08 MM, 1 ROWS, 6 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHPF Datasheet HPF Series Other Related Documents 01 +2

HPF-06-01-T-S

Active

Samtec Inc.

PCB RECEPTACLE, POWER TERMINAL, BOARD-TO-BOARD, 5.08 MM, 1 ROWS, 6 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsHPF Datasheet HPF Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPF-06-01-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.92 mm
Insulation Height	0.351 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Termination	Solder

HPF-06 Series

Part	Number of Positions	Insulation Material	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Contact Shape	Contact Material	Fastening Type	Contact Type	Number of Rows	Termination	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. HPF-06-02-T-S-LC-K	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Surface Mount	5.08 mm	0.2 in	Board Lock Pick and Place	8.92 mm	0.351 in
Samtec Inc. HPF-06-02-T-S-LC-K-TR	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Surface Mount	5.08 mm	0.2 in	Board Lock Pick and Place	8.92 mm	0.351 in
Samtec Inc. HPF-06-02-TM-S-TR	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Surface Mount	5.08 mm	0.2 in		8.92 mm	0.351 in
Samtec Inc. HPF-06-02-T-S-TR	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Surface Mount	5.08 mm	0.2 in		8.92 mm	0.351 in
Samtec Inc. HPF-06-01-TM-S	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Through Hole	5.08 mm	0.2 in		8.92 mm	0.351 in	0.102 in	2.6 mm
Samtec Inc. HPF-06-02-T-S-K-TR	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Surface Mount	5.08 mm	0.2 in	Pick and Place	8.92 mm	0.351 in
Samtec Inc. HPF-06-01-T-S	6	Liquid Crystal Polymer (LCP)	All	Black	Tin	Square	Beryllium Copper	Push-Pull	Female Socket	1	Solder	Receptacle	Through Hole	5.08 mm	0.2 in		8.92 mm	0.351 in	0.102 in	2.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.97
		10	$ 4.57
		100	$ 3.55
		500	$ 3.00
		1000	$ 2.80
Newark	Each	1	$ 4.06
		10	$ 3.88
		100	$ 3.25
		500	$ 2.76
		1000	$ 2.34
		2500	$ 2.15
		5000	$ 2.10

Description

General part information

HPF-06 Series

6 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin

Documents

Technical documentation and resources

HPF Datasheet

Datasheet

HPF Series Other Related Documents 01

Datasheet

Technical Data Sheet EN

Datasheet
