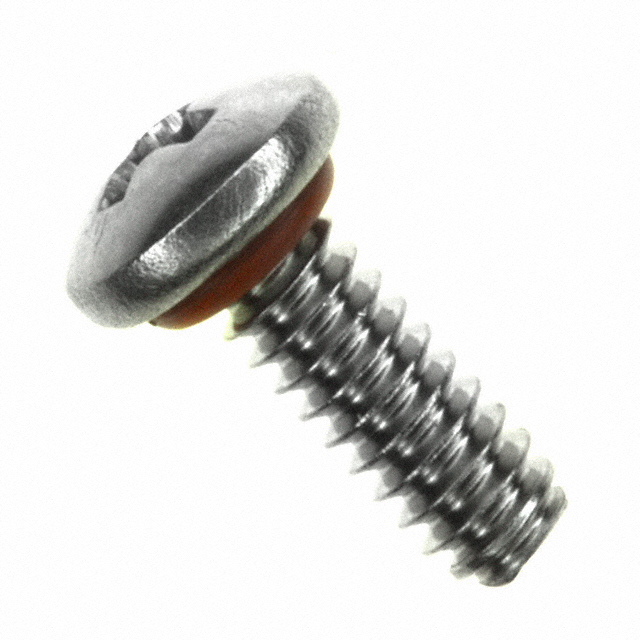

R4-40X5/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 4-40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R4-40X5/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 4-40

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R4-40X5/16 2701	R4-40 Series

Drive Type	Phillips	Phillips
Features	Self Sealing	Self Sealing
Head Diameter [diameter]	6.05 mm	6.05 mm
Head Diameter [diameter]	0.238 "	0.238 "
Head Height	2.03 mm	2.03 mm
Head Height	0.08 in	0.08 in
Length - Below Head	-	0.375 - 25.4 mm
Length - Below Head	-	0.25 - 22.23 in
Length - Below Head	-	0.25 - 1 in
Length - Below Head	-	1/2, 7/16
Length - Below Head [x]	0.313 in	0.313 - 0.875 in
Length - Below Head [x]	5 in	5 in
Length - Below Head [x]	7.95 mm	7.95 mm
Length - Overall	-	21.08 mm
Length - Overall [x]	9.98 mm	8.38 - 24.26 mm
Length - Overall [x]	0.393 in	0.33 - 0.955 in
Material	Stainless Steel	Stainless Steel
Screw Head Type	Pan Head	Pan Head
Thread Size	#4-40	#4-40
Type	Machine Screw	Machine Screw

R4-40 Series

MACHINE SCREW PAN PHILLIPS 4-40

Part	Length - Below Head	Length - Below Head	Length - Below Head	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Length - Overall [x]	Length - Overall [x]	Thread Size	Material	Type	Features	Screw Head Type	Head Height	Head Height	Length - Overall	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]
APM HEXSEAL R4-40X9/16 2701	14.3 mm	0.5625 in	0.563 in	6.05 mm	0.238 "	Phillips	0.643 in	16.33 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X5/8 2701	15.88 mm	0.625 in	0.625 in	6.05 mm	0.238 "	Phillips	0.705 in	17.91 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X3/4 2701	19.05 mm	0.75 "	0.75 "	6.05 mm	0.238 "	Phillips	0.83 in		#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in	21.08 mm
APM HEXSEAL R4-40X1/2 2701	12.7 mm		0.5 in	6.05 mm	0.238 "	Phillips	0.58 in	14.73 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in		1/2
APM HEXSEAL R4-40X1/4 2701	6.35 mm	0.25 in	0.25 in	6.05 mm	0.238 "	Phillips	0.33 in	8.38 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X7/16 2701	11.13 mm		0.438 "	6.05 mm	0.238 "	Phillips	0.518 in	13.16 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in		7/16
APM HEXSEAL R4-40X7/8 2701	0.875 in	22.23 mm		6.05 mm	0.238 "	Phillips	0.955 in	24.26 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in			0.875 in
APM HEXSEAL R4-40X1 2701	25.4 mm		1 in	6.05 mm	0.238 "	Phillips			#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X3/8-5701	0.375 "	9.53 mm	0.375 "	6.05 mm	0.238 "	Phillips	0.455 in	11.56 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X5/16 2701				6.05 mm	0.238 "	Phillips	0.393 in	9.98 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in			0.313 in	5 in	7.95 mm
