R4-40X1/2 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 4-40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

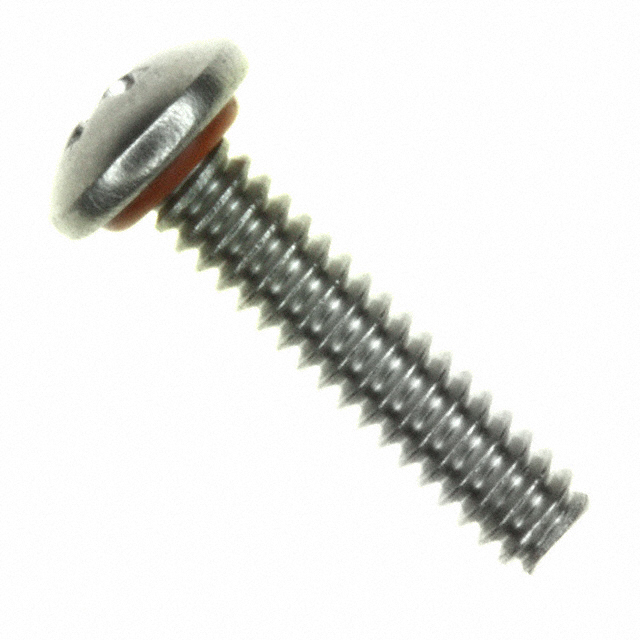

R4-40X1/2 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 4-40

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.74
		5	$ 0.64
		10	$ 0.53
		25	$ 0.50
		50	$ 0.48
		100	$ 0.42
		250	$ 0.40
		500	$ 0.38
		1000	$ 0.36

Description

General part information

R4-40 Series

#4-40 Pan Head Machine Screw Phillips Drive Stainless Steel

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R4-40X1/2 2701	R4-40 Series

Drive Type	Phillips	Phillips
Features	Self Sealing	Self Sealing
Head Diameter [diameter]	6.05 mm	6.05 mm
Head Diameter [diameter]	0.238 "	0.238 "
Head Height	2.03 mm	2.03 mm
Head Height	0.08 in	0.08 in
Length - Below Head	12.7 mm	0.375 - 25.4 mm
Length - Below Head	1/2	1/2, 7/16
Length - Below Head	0.5 in	0.25 - 1 in
Length - Below Head	-	0.25 - 22.23 in
Length - Below Head	-	0.313 - 0.875 in
Length - Below Head	-	5 in
Length - Below Head	-	7.95 mm
Length - Overall	-	21.08 mm
Length - Overall [x]	0.58 in	0.33 - 0.955 in
Length - Overall [x]	14.73 mm	8.38 - 24.26 mm
Material	Stainless Steel	Stainless Steel
Screw Head Type	Pan Head	Pan Head
Thread Size	#4-40	#4-40
Type	Machine Screw	Machine Screw

R4-40 Series

MACHINE SCREW PAN PHILLIPS 4-40

Part	Length - Below Head	Length - Below Head	Length - Below Head	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Length - Overall [x]	Length - Overall [x]	Thread Size	Material	Type	Features	Screw Head Type	Head Height	Head Height	Length - Overall	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]
APM HEXSEAL R4-40X9/16 2701	14.3 mm	0.5625 in	0.563 in	6.05 mm	0.238 "	Phillips	0.643 in	16.33 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X5/8 2701	15.88 mm	0.625 in	0.625 in	6.05 mm	0.238 "	Phillips	0.705 in	17.91 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X3/4 2701	19.05 mm	0.75 "	0.75 "	6.05 mm	0.238 "	Phillips	0.83 in		#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in	21.08 mm
APM HEXSEAL R4-40X1/2 2701	12.7 mm		0.5 in	6.05 mm	0.238 "	Phillips	0.58 in	14.73 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in		1/2
APM HEXSEAL R4-40X1/4 2701	6.35 mm	0.25 in	0.25 in	6.05 mm	0.238 "	Phillips	0.33 in	8.38 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X7/16 2701	11.13 mm		0.438 "	6.05 mm	0.238 "	Phillips	0.518 in	13.16 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in		7/16
APM HEXSEAL R4-40X7/8 2701	0.875 in	22.23 mm		6.05 mm	0.238 "	Phillips	0.955 in	24.26 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in			0.875 in
APM HEXSEAL R4-40X1 2701	25.4 mm		1 in	6.05 mm	0.238 "	Phillips			#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X3/8-5701	0.375 "	9.53 mm	0.375 "	6.05 mm	0.238 "	Phillips	0.455 in	11.56 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in
APM HEXSEAL R4-40X5/16 2701				6.05 mm	0.238 "	Phillips	0.393 in	9.98 mm	#4-40	Stainless Steel	Machine Screw	Self Sealing	Pan Head	2.03 mm	0.08 in			0.313 in	5 in	7.95 mm
