FOLC-120-02-S-Q-LC-P

Active

Samtec Inc.

CONN RCPT 80POS 0.05 GOLD SMD

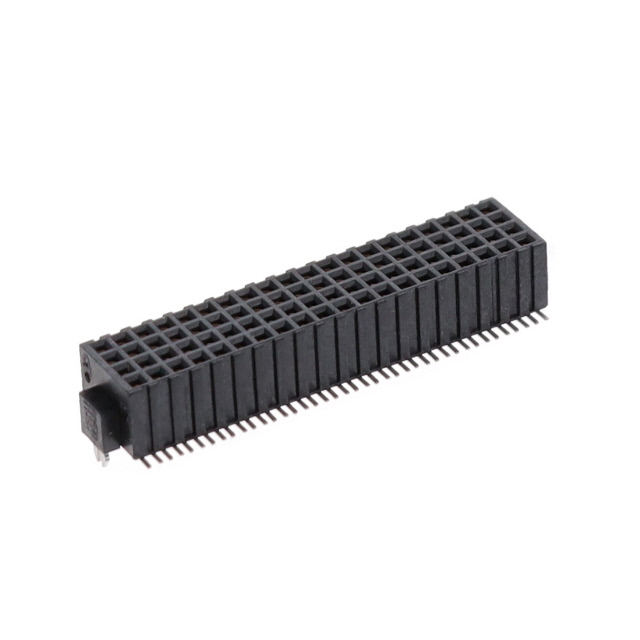

FOLC-120-02-S-Q-LC-P

Active

Samtec Inc.

CONN RCPT 80POS 0.05 GOLD SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

FOLC-120 Series

80 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

Specification	FOLC-120-02-S-Q-LC-P

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	2.6 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Lock
Insulation Color	Black
Insulation Height	0.178 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Style	Board
Termination	Solder

FOLC-120 Series

Part	Termination	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Current Rating (Per Contact)	Connector Type	Mounting Type	Insulation Color	Style	Number of Rows	Contact Type	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Row Spacing - Mating	Pitch - Mating	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Contact Material	Contact Shape	Insulation Material	Features	Contact Length - Post
Samtec Inc. FOLC-120-02-SM-Q-TR	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Surface Mount	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.178 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)
Samtec Inc. FOLC-120-L1-L-Q-LC	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Through Hole	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.18 in	125 °C	-55 °C	10 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)	Board Lock	0.075 in
Samtec Inc. FOLC-120-L2-S-Q-P-TR	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Surface Mount	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.178 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)	Pick and Place
Samtec Inc. FOLC-120-L2-S-Q-LC-P	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Surface Mount	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.178 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place
Samtec Inc. FOLC-120-M2-S-Q	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Surface Mount Through Hole	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.185 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)		0.12 in
Samtec Inc. FOLC-120-01-SM-Q-LC	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Through Hole	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.18 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)	Board Lock	0.075 in
Samtec Inc. FOLC-120-02-S-Q-LCR	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Surface Mount	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.178 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)	Board Lock
Samtec Inc. FOLC-120-04-S-Q	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Through Hole	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.18 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)		0.12 in
Samtec Inc. FOLC-120-L1-L-Q	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Through Hole	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.18 in	125 °C	-55 °C	10 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)		0.075 in
Samtec Inc. FOLC-120-02-S-Q-LC-P	Solder	Tin	Push-Pull	All	2.6 A	Receptacle	Surface Mount	Black	Board	4	Female Socket	Gold	80	UL94 V-0	0.05 in	0.05 in	0.178 in	125 °C	-55 °C	30 µin	Beryllium Copper	Square	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place
