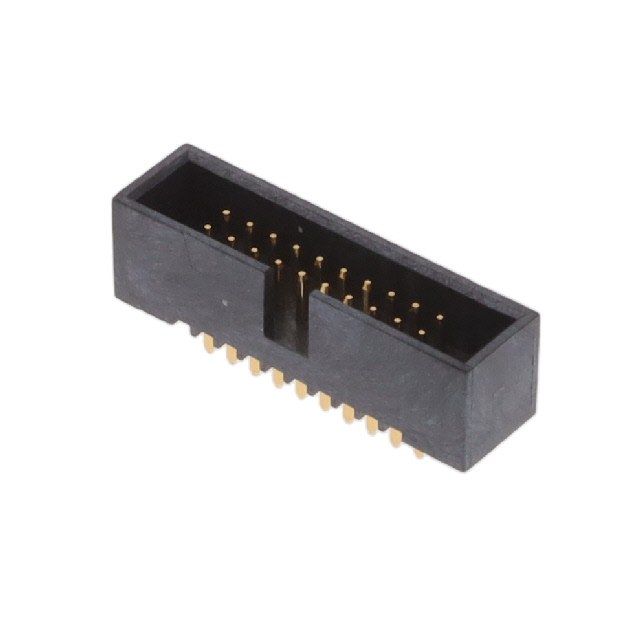

20021511-00020T4LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents10166143-00020C1LF Datasheet +1

20021511-00020T4LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 20POS 1.27MM

Deep-Dive with AI

Documents10166143-00020C1LF Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021511-00020T4LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VAC

20021511 Series

Part	Material Flammability Rating	Mounting Type	Style	Contact Finish Thickness - Post	Number of Rows	Features	Number of Positions	Insulation Color	Voltage Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Shrouding	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Termination	Current Rating (Amps)	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Insulation Height	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 20021511-00012T1LF	UL94 V-0	Through Hole	Board to Cable/Wire	Flash	2	Keying Slot	12	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square	Flash	Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A	Gold	-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in
Amphenol ICC (FCI) 20021511-00012T4LF	UL94 V-0	Through Hole	Board to Cable/Wire		2	Keying Slot	12	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square		Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A		-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in	10 çin	0.25 çm
Amphenol ICC (FCI) 20021511-00006T4LF	UL94 V-0	Through Hole	Board to Cable/Wire		2	Keying Slot	6	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square		Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A		-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in	10 çin	0.25 çm
Amphenol ICC (FCI) 20021511-00006T1LF	UL94 V-0	Through Hole	Board to Cable/Wire	Flash	2	Keying Slot	6	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square	Flash	Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A	Gold	-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in
Amphenol ICC (FCI) 20021511-00050T1LF	UL94 V-0	Through Hole	Board to Cable/Wire	Flash	2	Keying Slot	50	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square	Flash	Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A	Gold	-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in
Amphenol ICC (FCI) 20021511-00020T4LF	UL94 V-0	Through Hole	Board to Cable/Wire		2	Keying Slot	20	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square		Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A		-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in	10 çin	0.25 çm
Amphenol ICC (FCI) 20021511-00008T4LF	UL94 V-0	Through Hole	Board to Cable/Wire		2	Keying Slot	8	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square		Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A		-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in	10 çin	0.25 çm
Amphenol ICC (FCI) 20021511-00030T4LF	UL94 V-0	Through Hole	Board to Cable/Wire		2	Keying Slot	30	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square		Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A		-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in	10 çin	0.25 çm
Amphenol ICC (FCI) 20021511-00014T1LF	UL94 V-0	Through Hole	Board to Cable/Wire	Flash	2	Keying Slot	14	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square	Flash	Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A	Gold	-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in
Amphenol ICC (FCI) 20021511-00012T8LF	UL94 V-0	Through Hole	Board to Cable/Wire		2	Keying Slot	12	Black	125 VAC	Push-Pull	0.05 in	1.27 mm	Header	All	Square		Plastic	Copper Alloy	Shrouded - 4 Wall	Gold	0.091 in	2.3 mm	Solder	1 A		-40 °C	105 ░C	0.05 in	1.27 mm	Male Pin	5.4 mm	0.213 in	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.64
		10	$ 2.01
		100	$ 1.55
		500	$ 1.31
		1000	$ 1.19
		5000	$ 1.04

Description

General part information

20021511 Series

Connector Header Through Hole 20 position 0.050" (1.27mm)
