20021511-00006T4LF
ActiveAmphenol ICC (FCI)

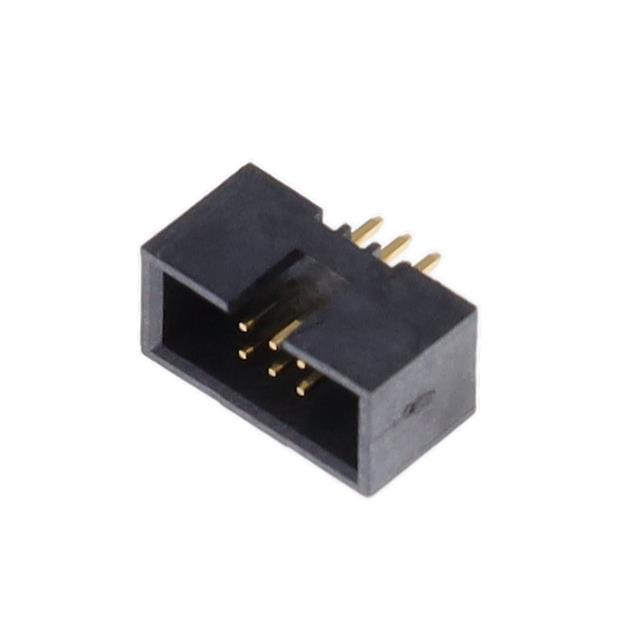

CONN HEADER VERT 6POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
20021511-00006T4LF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 6POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20021511-00006T4LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.4 mm |
| Insulation Height [z] | 0.213 in |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VAC |
20021511 Series
| Part | Material Flammability Rating | Mounting Type | Style | Contact Finish Thickness - Post | Number of Rows | Features | Number of Positions | Insulation Color | Voltage Rating | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions Loaded | Contact Shape | Contact Finish Thickness - Mating | Insulation Material | Contact Material | Shrouding | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Termination | Current Rating (Amps) | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Insulation Height | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | Flash | 2 | Keying Slot | 12 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Flash | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | Gold | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | ||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | 2 | Keying Slot | 12 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | 10 çin | 0.25 çm | |||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | 2 | Keying Slot | 6 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | 10 çin | 0.25 çm | |||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | Flash | 2 | Keying Slot | 6 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Flash | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | Gold | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | ||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | Flash | 2 | Keying Slot | 50 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Flash | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | Gold | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | ||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | 2 | Keying Slot | 20 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | 10 çin | 0.25 çm | |||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | 2 | Keying Slot | 8 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | 10 çin | 0.25 çm | |||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | 2 | Keying Slot | 30 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | 10 çin | 0.25 çm | |||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | Flash | 2 | Keying Slot | 14 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Flash | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | Gold | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | ||
Amphenol ICC (FCI) | UL94 V-0 | Through Hole | Board to Cable/Wire | 2 | Keying Slot | 12 | Black | 125 VAC | Push-Pull | 0.05 in | 1.27 mm | Header | All | Square | Plastic | Copper Alloy | Shrouded - 4 Wall | Gold | 0.091 in | 2.3 mm | Solder | 1 A | -40 °C | 105 ░C | 0.05 in | 1.27 mm | Male Pin | 5.4 mm | 0.213 in | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.64 | |
| 10 | $ 1.25 | |||
| 100 | $ 0.96 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.64 | |||
| 10000 | $ 0.60 | |||
Description
General part information
20021511 Series
Connector Header Through Hole 6 position 0.050" (1.27mm)
