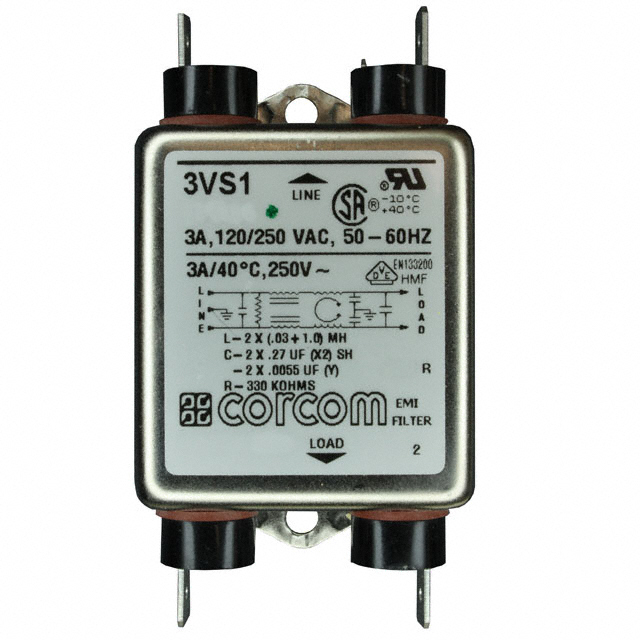

3VS1

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 120V/250VAC 3A CHASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 120V/250VAC 3A CHASS

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Approval Agency	Current	Voltage - Rated AC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Configuration	Filter Type	Mounting Type
TE Connectivity Raychem Cable Protection 3VB3	60 Hz	50 Hz	1.76 mH	CSA UR VDE	3 A	250 V	Wire Leads	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VV1	60 Hz	50 Hz	1.03 mH	CSA UR VDE	3 A	250 V	Quick Connect	-10 °C	40 °C	General Purpose	Two Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VS1	60 Hz	50 Hz	1.02 mH	CSA UR VDE	3 A	120 V 250 V	Quick Connect	-10 °C	40 °C	General Purpose	Two Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VQ8	60 Hz	50 Hz		CSA UR VDE	3 A	250 V	IEC 320-C14 Wire Leads	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VSK1	60 Hz	50 Hz	7.06 mH	CSA UR VDE	3 A	250 V	Quick Connect	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VK7M	60 Hz	50 Hz		CSA UR VDE	3 A	250 V	IEC 320-C14 Quick Connect	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
