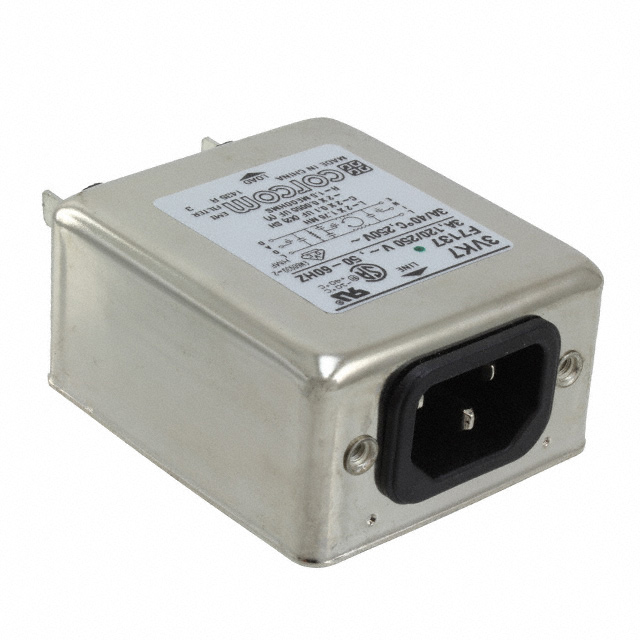

3VK7M

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 3A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 3A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Approval Agency	Current	Voltage - Rated AC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Configuration	Filter Type	Mounting Type
TE Connectivity Raychem Cable Protection 3VB3	60 Hz	50 Hz	1.76 mH	CSA UR VDE	3 A	250 V	Wire Leads	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VV1	60 Hz	50 Hz	1.03 mH	CSA UR VDE	3 A	250 V	Quick Connect	-10 °C	40 °C	General Purpose	Two Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VS1	60 Hz	50 Hz	1.02 mH	CSA UR VDE	3 A	120 V 250 V	Quick Connect	-10 °C	40 °C	General Purpose	Two Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VQ8	60 Hz	50 Hz		CSA UR VDE	3 A	250 V	IEC 320-C14 Wire Leads	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VSK1	60 Hz	50 Hz	7.06 mH	CSA UR VDE	3 A	250 V	Quick Connect	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount
TE Connectivity Raychem Cable Protection 3VK7M	60 Hz	50 Hz		CSA UR VDE	3 A	250 V	IEC 320-C14 Quick Connect	-10 °C	40 °C	General Purpose	Single Stage	Single Phase	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 3 A 250V 50/60Hz Single Stage IEC 320-C14, Quick Connect
