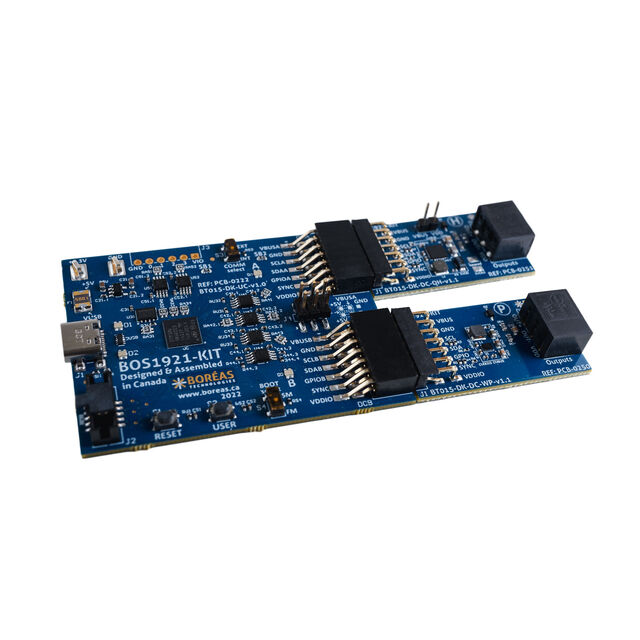

BOS1921-KIT-B01

Active

Boreas Technologies

EVAL BOARD FOR BOS1921

Search across all available documentation for this part.

Active

Boreas Technologies

EVAL BOARD FOR BOS1921

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BOS1921-KIT-B01	BOS1921 Series

Applications	-	Sensing, Haptic Feedback
Contents	Accessories, Board(s), Cable(s)	Accessories, Board(s), Cable(s)
Function	Motor Controller/Driver, Haptic/Vibration	Driver - Fully Integrated, Control and Power Stage, Motor Controller/Driver, Haptic/Vibration
Interface	-	I3C, I2C
Motor Type - AC, DC	-	Piezo
Mounting Type	-	Surface Mount
Operating Temperature	-	150 °C
Operating Temperature	-	-40 °C
Output Configuration	-	Differential
Package / Case	-	24-VFQFN Exposed Pad
Primary Attributes	Piezoelectric	Piezoelectric
Secondary Attributes	I2C/I3C Interface(s)	I2C/I3C Interface(s)
Supplier Device Package	-	24-QFN (4x4)
Technology	-	Power MOSFET
Type	Power Management	Power Management
Utilized IC / Part	BOS1921	BOS1921
Voltage - Load	-	95 V
Voltage - Supply	-	5.5 V
Voltage - Supply	-	3 V

IC MTR DRV PIEZO 3V-5.5V 24VFQFN

Part	Package / Case	Motor Type - AC, DC	Function	Mounting Type	Voltage - Load	Applications	Output Configuration	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Supplier Device Package	Secondary Attributes	Utilized IC / Part	Type	Contents	Primary Attributes
Boreas Technologies BOS1921CQR	24-VFQFN Exposed Pad	Piezo	Driver - Fully Integrated, Control and Power Stage	Surface Mount	95 V	Haptic Feedback, Sensing	Differential	Power MOSFET	150 °C	-40 °C	5.5 V	3 V	I2C, I3C	24-QFN (4x4)
Boreas Technologies BOS1921-KIT-B01			Motor Controller/Driver, Haptic/Vibration												I2C/I3C Interface(s)	BOS1921	Power Management	Accessories, Board(s), Cable(s)	Piezoelectric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 249.00

General part information

BOS1921 - Motor Controller/Driver, Haptic/Vibration Power Management Evaluation Board
