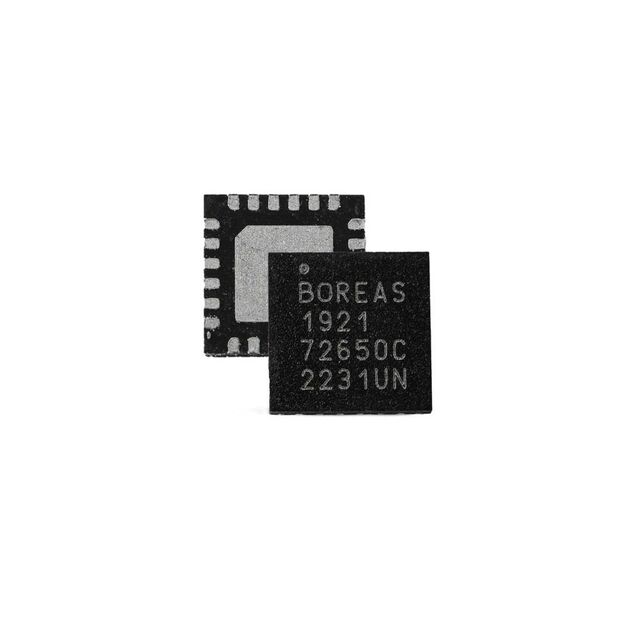

BOS1921CQR

Active

Boreas Technologies

IC MTR DRV PIEZO 3V-5.5V 24VFQFN

Search across all available documentation for this part.

Active

Boreas Technologies

IC MTR DRV PIEZO 3V-5.5V 24VFQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BOS1921CQR	BOS1921 Series

Applications	Sensing, Haptic Feedback	Sensing, Haptic Feedback
Contents	-	Accessories, Board(s), Cable(s)
Function	Driver - Fully Integrated, Control and Power Stage	Driver - Fully Integrated, Control and Power Stage, Motor Controller/Driver, Haptic/Vibration
Interface	I3C, I2C	I3C, I2C
Motor Type - AC, DC	Piezo	Piezo
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Differential	Differential
Package / Case	24-VFQFN Exposed Pad	24-VFQFN Exposed Pad
Primary Attributes	-	Piezoelectric
Secondary Attributes	-	I2C/I3C Interface(s)
Supplier Device Package	24-QFN (4x4)	24-QFN (4x4)
Technology	Power MOSFET	Power MOSFET
Type	-	Power Management
Utilized IC / Part	-	BOS1921
Voltage - Load	95 V	95 V
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	3 V	3 V

IC MTR DRV PIEZO 3V-5.5V 24VFQFN

Part	Package / Case	Motor Type - AC, DC	Function	Mounting Type	Voltage - Load	Applications	Output Configuration	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Supplier Device Package	Secondary Attributes	Utilized IC / Part	Type	Contents	Primary Attributes
Boreas Technologies BOS1921CQR	24-VFQFN Exposed Pad	Piezo	Driver - Fully Integrated, Control and Power Stage	Surface Mount	95 V	Haptic Feedback, Sensing	Differential	Power MOSFET	150 °C	-40 °C	5.5 V	3 V	I2C, I3C	24-QFN (4x4)
Boreas Technologies BOS1921-KIT-B01			Motor Controller/Driver, Haptic/Vibration												I2C/I3C Interface(s)	BOS1921	Power Management	Accessories, Board(s), Cable(s)	Piezoelectric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Motor Driver Power MOSFET I2C/I3C 24-QFN (4x4)
