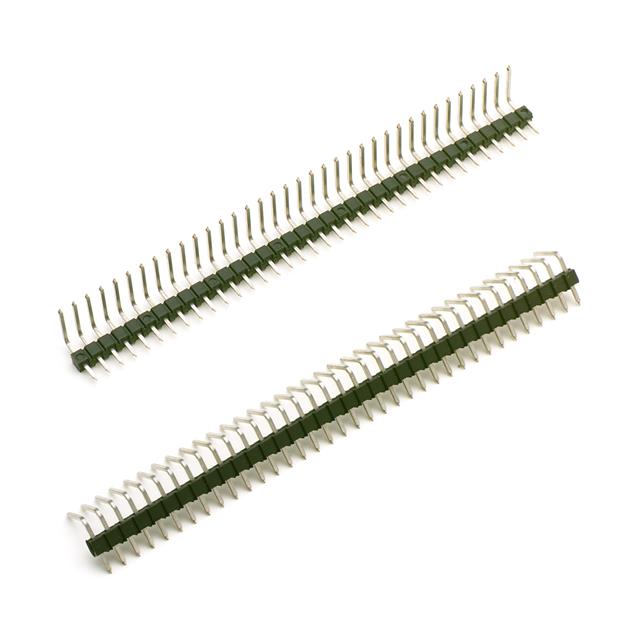

929400-01-07-RK

Active

3M (TC)

80001303397 929400-01-07-RK=7/HDR/PS/1R/ST/.295/ST .130/TIN/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

929400-01-07-RK

Active

3M (TC)

80001303397 929400-01-07-RK=7/HDR/PS/1R/ST/.295/ST .130/TIN/ROHS

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929400-01-07-RK

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.535 in
Overall Contact Length	13.59 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929400 Series

Part	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Number of Positions	Termination	Material Flammability Rating	Contact Material	Contact Shape	Fastening Type	Connector Type	Contact Type	Mounting Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions
3M (TC) 929400-01-18-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	18	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-33-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	33	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-11-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	11	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-06-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	6	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-20-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	20	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-35	0.535 in	13.59 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester		35	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	2.54 çm	100 çin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm	Tin-Lead
3M (TC) 929400-01-01-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	1	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin			2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-09	0.535 in	13.59 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester		9	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	2.54 çm	100 çin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm	Tin-Lead
3M (TC) 929400-01-16	0.535 in	13.59 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester			Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	2.54 çm	100 çin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm	Tin-Lead	16
3M (TC) 929400-01-07-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	7	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.79
		1	$ 0.79
		10	$ 0.67
		10	$ 0.69
		100	$ 0.60
		100	$ 0.57
		500	$ 0.49
		500	$ 0.49
		1000	$ 0.44
		1000	$ 0.41
		5000	$ 0.38
		5000	$ 0.36
		10000	$ 0.33
		10000	$ 0.36
Newark	Each	500	$ 0.51
		1000	$ 0.47

Description

General part information

929400 Series

Connector Header Through Hole 7 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
