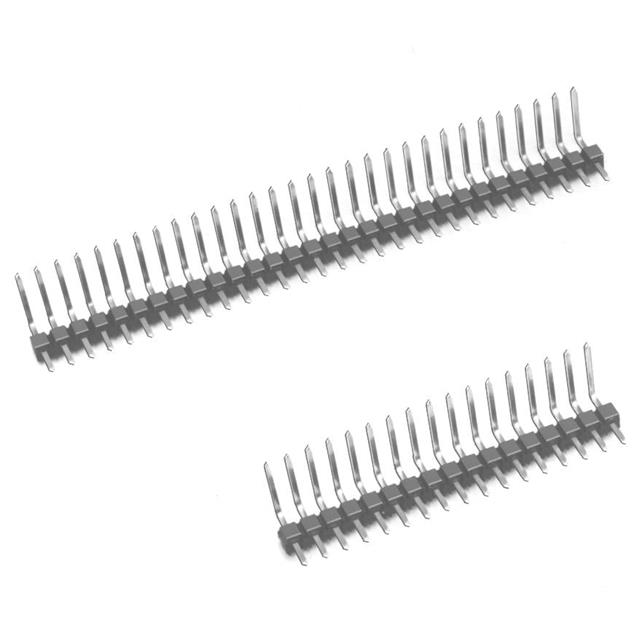

929400-01-01-RK

Active

3M (TC)

3M PIN STRIP HEADER, 929 SERIES,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

929400-01-01-RK

Active

3M (TC)

3M PIN STRIP HEADER, 929 SERIES,

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929400-01-01-RK

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.535 in
Overall Contact Length	13.59 mm
Shrouding	Unshrouded
Termination	Solder

929400 Series

Part	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Number of Positions	Termination	Material Flammability Rating	Contact Material	Contact Shape	Fastening Type	Connector Type	Contact Type	Mounting Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions
3M (TC) 929400-01-18-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	18	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-33-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	33	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-11-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	11	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-06-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	6	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-20-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	20	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-35	0.535 in	13.59 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester		35	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	2.54 çm	100 çin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm	Tin-Lead
3M (TC) 929400-01-01-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	1	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin			2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm
3M (TC) 929400-01-09	0.535 in	13.59 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester		9	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	2.54 çm	100 çin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm	Tin-Lead
3M (TC) 929400-01-16	0.535 in	13.59 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester			Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	2.54 çm	100 çin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm	Tin-Lead	16
3M (TC) 929400-01-07-RK	0.535 in	13.59 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Tin	7	Solder	UL94 V-0	Copper Alloy	Square	Push-Pull	Breakaway Header	Male Pin	Through Hole	1	5.08 µm	200 µin	0.1 in	2.54 mm	2.5 A	Black	Unshrouded	-40 °C	105 ░C	7.49 mm	0.295 in	0.13 in	3.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20
		1	$ 0.26
		10	$ 0.15
		36	$ 0.19
		100	$ 0.11
		108	$ 0.17
		500	$ 0.09
		504	$ 0.14
		1000	$ 0.08
		1008	$ 0.12
		5000	$ 0.07
		5004	$ 0.10
		10000	$ 0.07
		10008	$ 0.09

Description

General part information

929400 Series

Connector Header Through Hole 1 position

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
