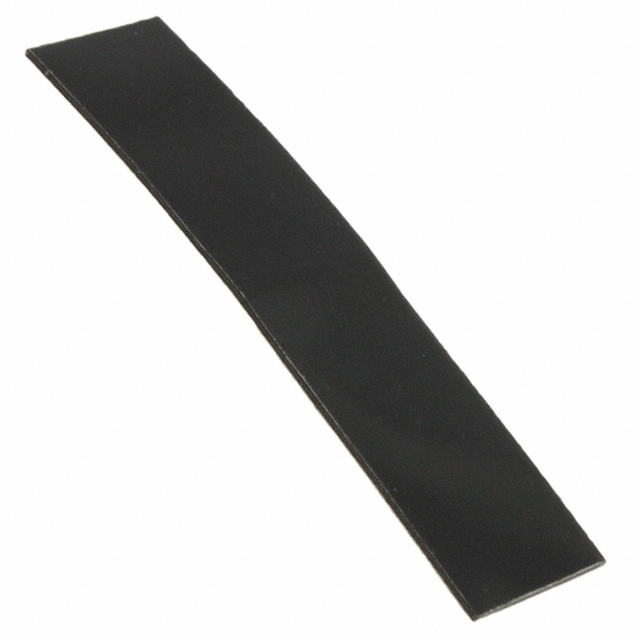

5-4929-1/2-2R

Obsolete

3M (TC)

TAPE DBL SIDED BLACK 1/2"X2"

Deep-Dive with AI

Search across all available documentation for this part.

5-4929-1/2-2R

Obsolete

3M (TC)

TAPE DBL SIDED BLACK 1/2"X2"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-4929-1/2-2R

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	Black
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	0.635 mm
Thickness	0.635 mm
Thickness	0.025 in
Usage	General Purpose
Width	0.5 in
Width	12.7 mm
Width	0.5 in

4929 Series

Part	Shelf Life	Temperature Range	Temperature Range	Usage	Tape Type	Shelf Life Start	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Backing, Carrier	Width [diameter]	Width	Width	Thickness	Thickness	Thickness	Length [x]	Length	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Length	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Length	Length [x]	Width
3M (TC) 4929CIR-0.75(5)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film	0.75 in	19.05 mm	0.75 in	0.635 mm	0.635 mm	0.025 in
3M (TC) 4929-0.75-3(100)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		19.05 mm	0.75 in	0.635 mm	0.635 mm	0.025 in	3 in	76.2 mm	0.75 in
3M (TC) 4929SQ-12(6)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film				0.635 mm	0.635 mm	0.025 in		304.8 mm		0.002 "	0.051 mm	2 mils	304.8 mm	12 in	12 "	0.023 "	23 mils	0.584 mm
3M (TC) 4929-0.5-5	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in		4.6 m	0.5 in	0.002 "	0.051 mm	2 mils			15 ft	0.023 "	23 mils	0.584 mm	5 yd
3M (TC) 4929-0.5-4(5)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in	4 "		0.5 in											101.6 mm
3M (TC) 4929SQ-1.5(5)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film			38.1 mm	0.635 mm	0.635 mm	0.025 in		38.1 mm	1.5 "						1.5 "						1 1/2
3M (TC) 4929SQ-0.5(250)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in		12.7 mm	0.5 in						0.5 in				0.5 in
3M (TC) 4929CIR-0.5(250)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film	0.5 in		12.7 mm	0.635 mm	0.635 mm	0.025 in			0.5 in
3M (TC) 5-4929-1/2-2R	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in			0.5 in
3M (TC) 3M 4929 1/2" X 4"-100	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in	4 "		0.5 in											101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4929 Series

Double Coated, Double Sided Tape Acrylic Adhesive Black 0.50" (12.70mm) 1/2" X 2.00" (50.80mm)

Documents

Technical documentation and resources

No documents available
