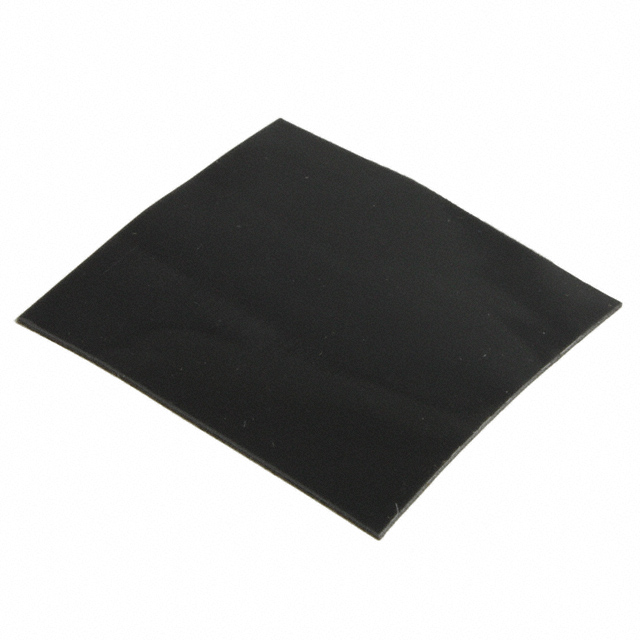

4929SQ-1.5(5)

Obsolete

3M (TC)

TAPE DBL SIDED BLK 1 1/2"X1.50"

Deep-Dive with AI

Search across all available documentation for this part.

4929SQ-1.5(5)

Obsolete

3M (TC)

TAPE DBL SIDED BLK 1 1/2"X1.50"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4929SQ-1.5(5)

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	Black
Length	38.1 mm
Length	1.5 "
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	0.635 mm
Thickness	0.635 mm
Thickness	0.025 in
Usage	General Purpose
Width	1.5 "
Width	38.1 mm
Width	1 1/2

4929 Series

Part	Shelf Life	Temperature Range	Temperature Range	Usage	Tape Type	Shelf Life Start	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Backing, Carrier	Width [diameter]	Width	Width	Thickness	Thickness	Thickness	Length [x]	Length	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Length	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Length	Length [x]	Width
3M (TC) 4929CIR-0.75(5)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film	0.75 in	19.05 mm	0.75 in	0.635 mm	0.635 mm	0.025 in
3M (TC) 4929-0.75-3(100)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		19.05 mm	0.75 in	0.635 mm	0.635 mm	0.025 in	3 in	76.2 mm	0.75 in
3M (TC) 4929SQ-12(6)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film				0.635 mm	0.635 mm	0.025 in		304.8 mm		0.002 "	0.051 mm	2 mils	304.8 mm	12 in	12 "	0.023 "	23 mils	0.584 mm
3M (TC) 4929-0.5-5	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in		4.6 m	0.5 in	0.002 "	0.051 mm	2 mils			15 ft	0.023 "	23 mils	0.584 mm	5 yd
3M (TC) 4929-0.5-4(5)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in	4 "		0.5 in											101.6 mm
3M (TC) 4929SQ-1.5(5)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film			38.1 mm	0.635 mm	0.635 mm	0.025 in		38.1 mm	1.5 "						1.5 "						1 1/2
3M (TC) 4929SQ-0.5(250)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in		12.7 mm	0.5 in						0.5 in				0.5 in
3M (TC) 4929CIR-0.5(250)	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film	0.5 in		12.7 mm	0.635 mm	0.635 mm	0.025 in			0.5 in
3M (TC) 5-4929-1/2-2R	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in			0.5 in
3M (TC) 3M 4929 1/2" X 4"-100	24 Months	200 °F	93 °C	General Purpose	Double Coated Double Sided	Date of Shipment	Acrylic	4 °C 40 °F	38 °C 100 °F	Black	Polyester Film		0.5 in	12.7 mm	0.635 mm	0.635 mm	0.025 in	4 "		0.5 in											101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4929 Series

Double Coated, Double Sided Tape Acrylic Adhesive Black 1.50" (38.10mm) 1 1/2" X 1.50" (38.10mm)

Documents

Technical documentation and resources

No documents available
