PJ-050A

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-050A

Actual Diameter [diameter]	0.236 ", 2 mm, 0.079 ", 6 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating	Tin
Current Rating (Amps)	2.5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.378 in
Mating Length/Depth	9.6 mm
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Contact Material - Plating [custom]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Termination	Connector Type	Gender	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Housing Material	Voltage - Rated	Shielding	Body Color	Internal Switch(s)	Mating Length/Depth	Mating Length/Depth	Number of Positions/Contacts	Material Flammability Rating	Contact Material	Contact Material - Plating	Actual Diameter [diameter]	Features
CUI Devices PJ-050BH	Silver	5 A	-25 °C	85 °C	Through Hole Right Angle	2.5 mm	6 mm	0.236 in	0.098 "	Solder	Jack	Male	2.5 mm 5.5 mm	0.098 " 0.217 "	Polybutylene Terephthalate (PBT)	24 VDC	Unshielded	Black	Normally Closed Single Switch	0.378 in	9.6 mm	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy
CUI Devices PJ-050A		2.5 A	-25 °C	85 °C	Through Hole Right Angle					Solder	Jack	Male	2.1 mm 5.5 mm	0.083 in 0.217 "	Polybutylene Terephthalate (PBT)	24 VDC	Unshielded	Black	Normally Closed Single Switch	0.378 in	9.6 mm	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy	Tin	0.079 " 0.236 " 2 mm 6 mm
CUI Devices PJ-050B		2.5 A	-25 °C	85 °C	Through Hole Right Angle	2.5 mm	6 mm	0.236 in	0.098 "	Solder	Jack	Male	2.5 mm 5.5 mm	0.098 " 0.217 "	Polyamide (PA9T) Nylon 9T	24 VDC	Unshielded	Black	Normally Closed Single Switch	0.378 in	9.6 mm	2 Conductors 3 Conductors	UL94 V-0	Brass Copper Alloy	Tin		Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.49

General part information

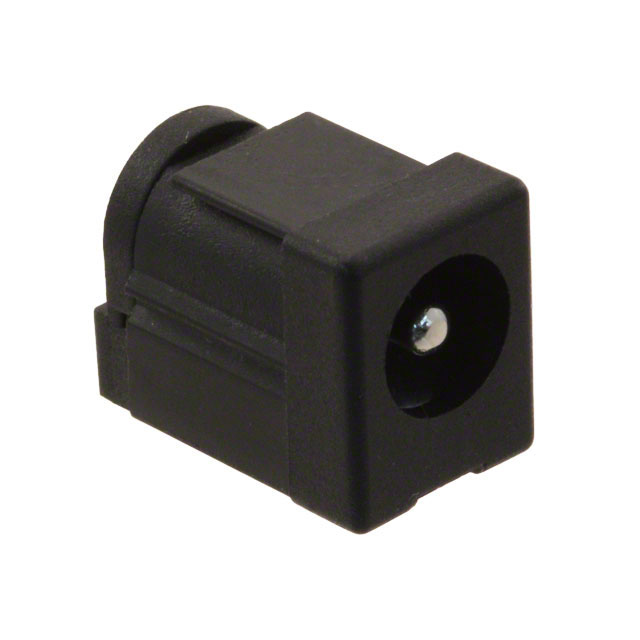

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
