PJ-050BH
ActiveCUI Devices

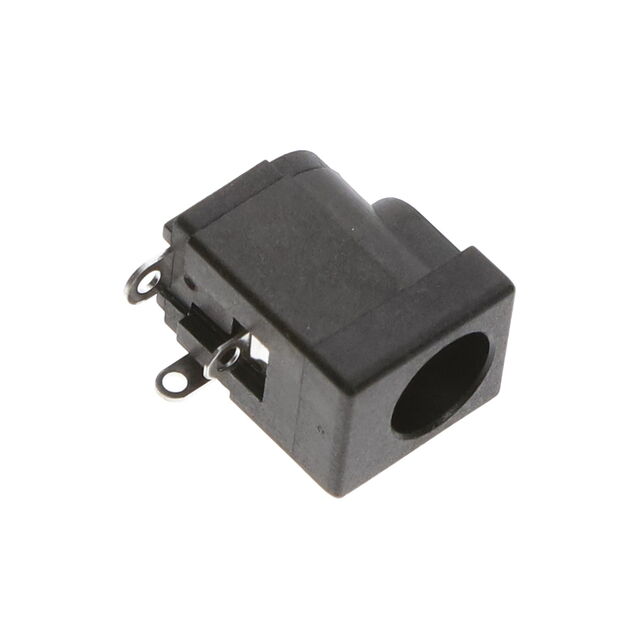

CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-050BH
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-050BH |
|---|---|
| Actual Diameter [custom] | 2.5 mm |
| Actual Diameter [custom] | 6 mm |
| Actual Diameter [custom] | 0.236 in |
| Actual Diameter [custom] | 0.098 " |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.378 in |
| Mating Length/Depth | 9.6 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
PJ-050 Series
| Part | Contact Material - Plating [custom] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Termination | Connector Type | Gender | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Housing Material | Voltage - Rated | Shielding | Body Color | Internal Switch(s) | Mating Length/Depth | Mating Length/Depth | Number of Positions/Contacts | Material Flammability Rating | Contact Material | Contact Material - Plating | Actual Diameter [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Silver | 5 A | -25 °C | 85 °C | Through Hole Right Angle | 2.5 mm | 6 mm | 0.236 in | 0.098 " | Solder | Jack | Male | 2.5 mm 5.5 mm | 0.098 " 0.217 " | Polybutylene Terephthalate (PBT) | 24 VDC | Unshielded | Black | Normally Closed Single Switch | 0.378 in | 9.6 mm | 2 Conductors 3 Conductors | UL94 V-0 | Brass Copper Alloy | |||
CUI Devices | 2.5 A | -25 °C | 85 °C | Through Hole Right Angle | Solder | Jack | Male | 2.1 mm 5.5 mm | 0.083 in 0.217 " | Polybutylene Terephthalate (PBT) | 24 VDC | Unshielded | Black | Normally Closed Single Switch | 0.378 in | 9.6 mm | 2 Conductors 3 Conductors | UL94 V-0 | Brass Copper Alloy | Tin | 0.079 " 0.236 " 2 mm 6 mm | ||||||
CUI Devices | 2.5 A | -25 °C | 85 °C | Through Hole Right Angle | 2.5 mm | 6 mm | 0.236 in | 0.098 " | Solder | Jack | Male | 2.5 mm 5.5 mm | 0.098 " 0.217 " | Polyamide (PA9T) Nylon 9T | 24 VDC | Unshielded | Black | Normally Closed Single Switch | 0.378 in | 9.6 mm | 2 Conductors 3 Conductors | UL94 V-0 | Brass Copper Alloy | Tin | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.56 | |||
| 2500 | $ 0.52 | |||
Description
General part information
PJ-050 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
