357-012-558-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

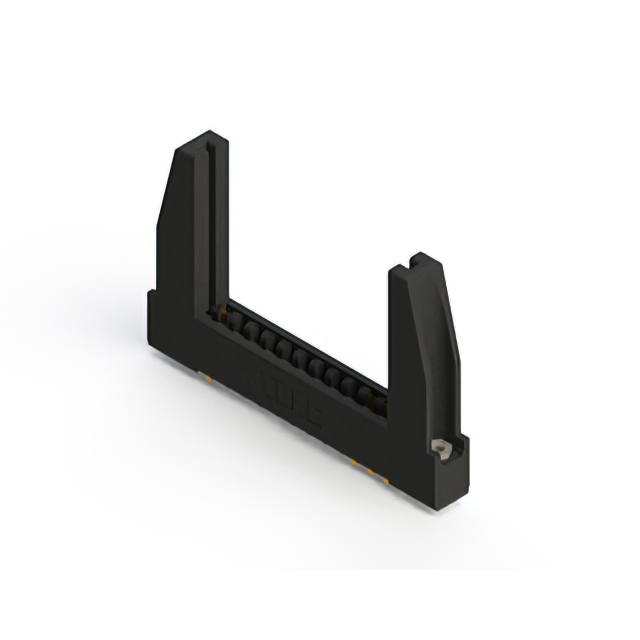

357-012-558-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-012-558-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-012 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Mounting Type | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Number of Rows | Termination Rows | Color | Contact Finish | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Material - Insulation | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | Through Hole | 6 | 0.156 in | 3.96 mm | 2 | 2 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | |
EDAC Inc. | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | Board Edge Straddle Mount | 6 | 0.156 in | 3.96 mm | 2 | 2 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Card Extender |
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Surface Mount | 12 | 0.156 in | 3.96 mm | 2 | 1 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Through Hole Right Angle | 12 | 0.156 in | 3.96 mm | 1 | 1 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Card Guides | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Through Hole | 12 | 0.156 in | 3.96 mm | 1 | 1 | Black | Tin | Female | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Card Guides | ||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Through Hole | 12 | 0.156 in | 3.96 mm | 1 | 1 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 12 | 0.156 in | 3.96 mm | 2 | 1 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | ||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Through Hole | 6 | 0.156 in | 3.96 mm | 2 | 2 | Black | Tin | Female | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | |||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Through Hole | 12 | 0.156 in | 3.96 mm | 1 | 1 | Black | Gold | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 12 | 0.156 in | 3.96 mm | 2 | 1 | Black | Tin | Female | Solder | Copper Alloy | Polyester Thermoplastic | Semi Bellows | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
