Description

General part information

357-012 Series

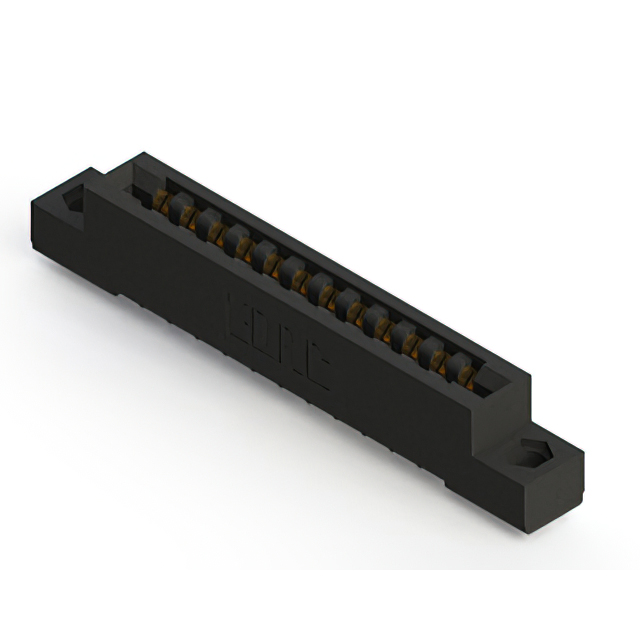

24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	357-012-554-104

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Surface Mount
Number of Positions	24 pos, 12
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

357-012 Series

...

Part	Contact Finish	Pitch	Gender	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Material	Contact Type	Flange Feature Diameter	Flange Feature	Number of Positions	Termination	Number of Rows	Color	Mounting Type	Read Out	Operating Temperature (Min)	Operating Temperature (Max)	Termination Rows	Material - Insulation	Contact Finish Thickness	Features
EDAC Inc. 357-012-457-112	Tin	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows	0.128 in	Flush Mount Side Opening Unthreaded	12 24 pos	Solder	2	Black	Right Angle Through Hole	Dual	-40 °C	105 °C	1 rows	Polyester Thermoplastic
EDAC Inc. 357-012-500-203	Gold	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows	0.116 in	Floating Bobbin Flush Mount	6 12	Solder Eyelet(s)	2	Black	Through Hole	Dual	-40 °C	105 °C	2 rows	Polyester Thermoplastic	10 Ąin
EDAC Inc. 357-012-559-278	Gold	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening	6 12	Solder	2	Black	Right Angle Through Hole	Dual	-40 °C	105 °C	2 rows	Polyester Thermoplastic	10 Ąin	Card Guides
EDAC Inc. 357-012-554-104	Gold	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows	0.156 in	Flush Mount Top Opening Unthreaded	12 24 pos	Solder Eyelet(s)	2	Black	Surface Mount	Dual	-40 °C	105 °C	1 rows	Polyester Thermoplastic	10 Ąin
EDAC Inc. 357-012-558-178	Gold	0.156 in	Female	0.054 in	0.07 in	Non Specified Single Edge	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening	12	Solder	1	Black	Right Angle Through Hole	Single	-40 °C	105 °C	1 rows	Polyester Thermoplastic	10 Ąin	Card Guides
EDAC Inc. 357-012-427-168	Tin	0.156 in	Female	0.054 in	0.07 in	Non Specified Single Edge	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening	12	Solder	1	Black	Through Hole	Single	-40 °C	105 °C	1 rows	Polyester Thermoplastic		Card Guides
EDAC Inc. 357-012-527-178	Gold	0.156 in	Female	0.054 in	0.07 in	Non Specified Single Edge	Copper Alloy	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening	12	Solder	1	Black	Through Hole	Single	-40 °C	105 °C	1 rows	Polyester Thermoplastic	10 Ąin	Card Guides
EDAC Inc. 357-012-459-201	Tin	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows			6 12	Solder	2	Black	Right Angle Through Hole	Dual	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 357-012-553-101	Gold	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows			12 24 pos	Solder	2	Black	Right Angle Through Hole	Dual	-40 °C	105 °C	1 rows	Polyester Thermoplastic	10 Ąin
EDAC Inc. 357-012-420-207	Tin	0.156 in	Female	0.054 in	0.07 in	Dual Edge Non Specified	Copper Alloy	Semi Bellows		Flush Mount M3 Threaded Insert Top Opening	6 12	Solder	2	Black	Through Hole	Dual	-40 °C	105 °C	2 rows	Polyester Thermoplastic
