284159-1

Active

TE Connectivity Raychem Cable Protection

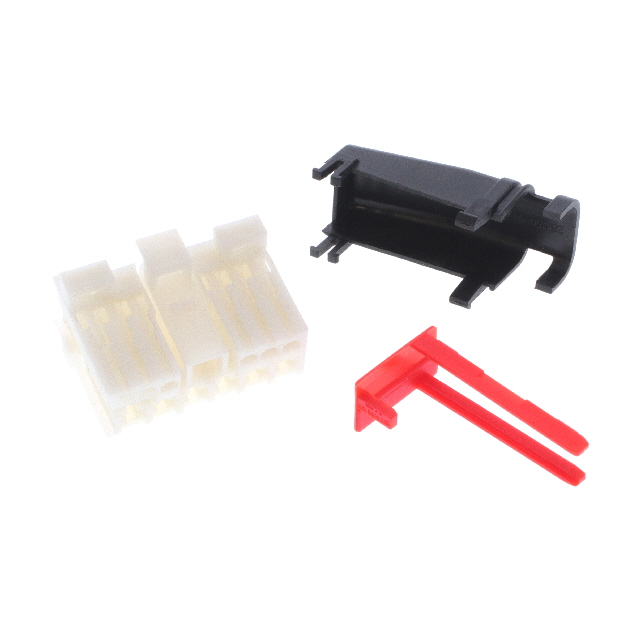

CONN HOUSING PL 12 POS 5MM CRIMP RA CABLE MOUNT NATURAL BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HEADERS AND CONNECTORS FOR DOOR JUNCTION SYSTEM +4

284159-1

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING PL 12 POS 5MM CRIMP RA CABLE MOUNT NATURAL BAG

Deep-Dive with AI

DocumentsDatasheet HEADERS AND CONNECTORS FOR DOOR JUNCTION SYSTEM +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	284159-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Right Angle Cable Exit
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Row Spacing	0.232 in
Row Spacing	5.9 mm

Multilock Connector System Series

Automotive Connectors 040III HD 72POS CAP ASY H TIN

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Features	Number of Rows	Contact Termination	Number of Positions	Fastening Type	Row Spacing	Row Spacing	Insulation Material	Note	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Material	Current Rating (Amps)	Voltage Rating	Termination	Contact Finish	Housing Color	Connector/Contact Type	Flat Flex Type	Housing Material
TE Connectivity Raychem Cable Protection 284159-1	Receptacle	-30 ░C	105 ░C	Free Hanging (In-Line)	Black	Right Angle Cable Exit	2	Crimp	12	Latch Holder	0.232 in	5.9 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Contacts Not Included	Female Socket
TE Connectivity Raychem Cable Protection 917978-7	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	Yellow		2	Crimp	12	Latch Lock	0.205 in	5.2 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3.5 mm	0.138 in
TE Connectivity Raychem Cable Protection 282369-1	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	Natural		2	Crimp	20	Latch Lock	0.232 in	5.9 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket
TE Connectivity Raychem Cable Protection 174514-6	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	Gray		2	Crimp		Latch Holder	0.205 in	5.2 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3 mm	0.118 in	16
TE Connectivity Raychem Cable Protection 174921-1	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	White		1	Crimp		Latch Holder			Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3.5 mm	0.138 in
TE Connectivity Raychem Cable Protection 1-174939-1	Receptacle				White		2	Crimp	30		0.232 in	5.9 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Tab
TE Connectivity Raychem Cable Protection 2822344-2	Receptacle	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Sealed	3	Crimp	7	Locking Ramp	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Tab	2.4 mm	0.094 in
TE Connectivity Raychem Cable Protection 1123899-1		-30 ░C	80 C	Free Hanging (In-Line)					2										Copper Alloy	10 mA	12 V	Crimp	Tin	Natural	Cap Male Pins	FPC	Polybutylene Terephthalate (PBT)
TE Connectivity Raychem Cable Protection 174975-1
TE Connectivity Raychem Cable Protection 1-174921-1	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	White		1	Crimp		Latch Holder			Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3.5 mm	0.138 in
