174921-1

Active

TE Connectivity Raychem Cable Protection

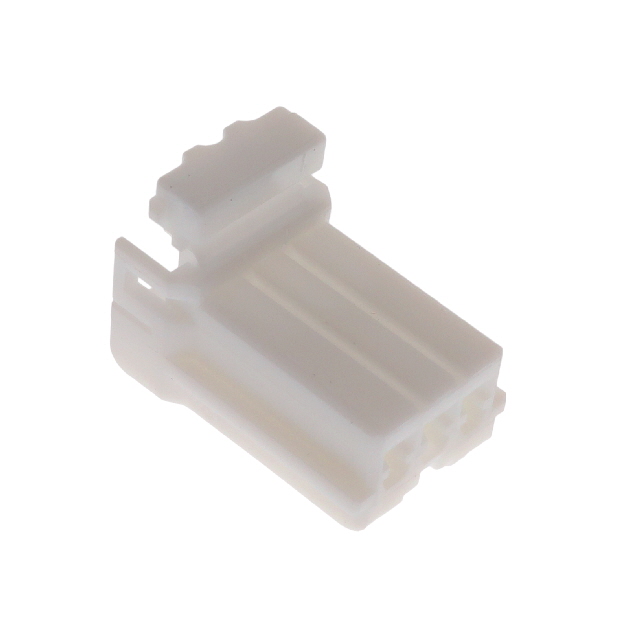

CONN PLUG HSG 3POS 3.50MM

Deep-Dive with AI

Search across all available documentation for this part.

174921-1

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 3POS 3.50MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	174921-1

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in

Multilock Connector System Series

Automotive Connectors 040III HD 72POS CAP ASY H TIN

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Features	Number of Rows	Contact Termination	Number of Positions	Fastening Type	Row Spacing	Row Spacing	Insulation Material	Note	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Material	Current Rating (Amps)	Voltage Rating	Termination	Contact Finish	Housing Color	Connector/Contact Type	Flat Flex Type	Housing Material
TE Connectivity Raychem Cable Protection 284159-1	Receptacle	-30 ░C	105 ░C	Free Hanging (In-Line)	Black	Right Angle Cable Exit	2	Crimp	12	Latch Holder	0.232 in	5.9 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Contacts Not Included	Female Socket
TE Connectivity Raychem Cable Protection 917978-7	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	Yellow		2	Crimp	12	Latch Lock	0.205 in	5.2 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3.5 mm	0.138 in
TE Connectivity Raychem Cable Protection 282369-1	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	Natural		2	Crimp	20	Latch Lock	0.232 in	5.9 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket
TE Connectivity Raychem Cable Protection 174514-6	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	Gray		2	Crimp		Latch Holder	0.205 in	5.2 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3 mm	0.118 in	16
TE Connectivity Raychem Cable Protection 174921-1	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	White		1	Crimp		Latch Holder			Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3.5 mm	0.138 in
TE Connectivity Raychem Cable Protection 1-174939-1	Receptacle				White		2	Crimp	30		0.232 in	5.9 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included	Tab
TE Connectivity Raychem Cable Protection 2822344-2	Receptacle	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	Sealed	3	Crimp	7	Locking Ramp	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Tab	2.4 mm	0.094 in
TE Connectivity Raychem Cable Protection 1123899-1		-30 ░C	80 C	Free Hanging (In-Line)					2										Copper Alloy	10 mA	12 V	Crimp	Tin	Natural	Cap Male Pins	FPC	Polybutylene Terephthalate (PBT)
TE Connectivity Raychem Cable Protection 174975-1
TE Connectivity Raychem Cable Protection 1-174921-1	Plug	-30 ░C	105 ░C	Free Hanging (In-Line)	White		1	Crimp		Latch Holder			Polybutylene Terephthalate (PBT)	Contacts Not Included	Female Socket	3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.11
		10	$ 0.94
		25	$ 0.88
		50	$ 0.84
		100	$ 0.80
		300	$ 0.74
		500	$ 0.71
		1000	$ 0.68
		2500	$ 0.64

Description

General part information

Multilock Connector System Series

Automotive Connectors 040III HD 72POS CAP ASY H TIN

Documents

Technical documentation and resources

No documents available
