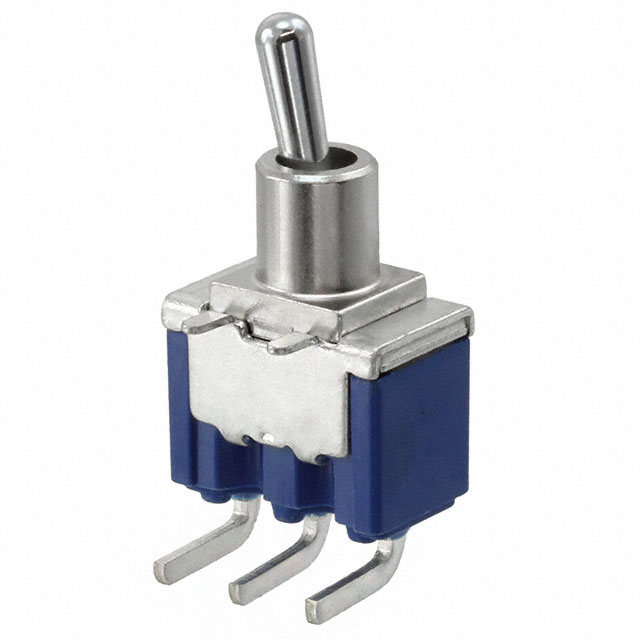

8G1014-Z
ActiveNidec Components Corporation
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8G1014-Z
ActiveNidec Components Corporation
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8G1014-Z |
|---|---|
| Actuator Length [x] | 6.8 mm |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Features | Washable |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.81 | |
| 10 | $ 6.13 | |||
| 25 | $ 5.82 | |||
| 50 | $ 5.58 | |||
| 100 | $ 5.39 | |||
| 250 | $ 5.11 | |||
| 500 | $ 4.68 | |||
| 1000 | $ 4.47 | |||
Description
General part information
8G1014 Series
Toggle Switch SPDT Through Hole, Right Angle
