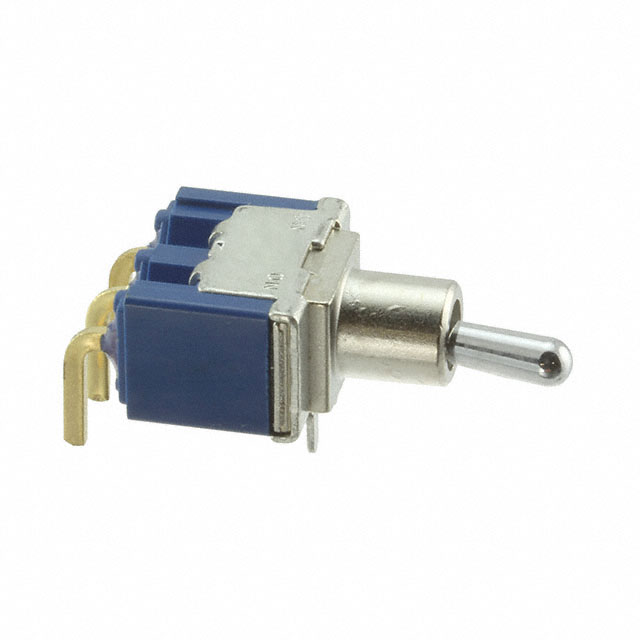

8G1014C-Z

Obsolete

Nidec Components Corporation

SWITCH TOGGLE SPDT 25MA 20V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE SPDT 25MA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Features	Current Rating (Amps)	Mounting Type	Actuator Length [x]	Bushing Thread	Switch Function	Actuator Type	Electrical Life	Termination Style	Circuit	Illumination	Voltage Rating - AC
Nidec Components Corporation 8G1014C-Z	-25 °C	80 C	20 V	Washable	25 mA	Through Hole Right Angle	6.8 mm	Unthreaded	On-On	Standard Round	50000 Cycles	PC Pin	SPDT	Non-Illuminated
Nidec Components Corporation 8G1014-Z	-25 °C	80 C	30 V	Washable	4 A 6 A	Through Hole Right Angle	6.8 mm	Unthreaded	On-On	Standard Round	50000 Cycles	PC Pin	SPDT	Non-Illuminated	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Through Hole, Right Angle
