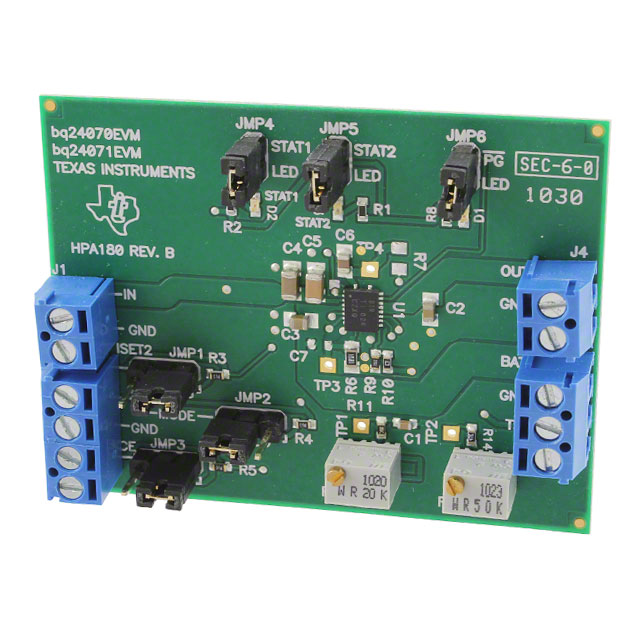

BQ24071EVM
ActiveEVAL MODULE FOR BQ24070/1
Deep-Dive with AI
Search across all available documentation for this part.
BQ24071EVM
ActiveEVAL MODULE FOR BQ24070/1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24071EVM | BQ24071 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1.5 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Reverse Current, Short Circuit, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 125 ¯C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | Charge Timer | Charge Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-VQFN (3.5x4.5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24071 | BQ24071 |
| Voltage - Supply (Max) | - | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24071 Series
1-cell 2-A Li-ion linear battery charger,Power Path, Output regulated to 6V
| Part | Programmable Features | Charge Current - Max [Max] | Voltage - Supply (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cells | Current - Charging | Battery Pack Voltage | Fault Protection | Battery Chemistry | Supplier Device Package | Package / Case | Mounting Type | Secondary Attributes | Function | Utilized IC / Part | Primary Attributes | Embedded | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24071RHLR | Current, Timer | 1.5 A | 16 V | 125 ¯C | -40 °C | 1 | Constant - Programmable | 4.2 V | Over Temperature, Reverse Current, Short Circuit | Lithium Ion/Polymer | 20-VQFN (3.5x4.5) | 20-VFQFN Exposed Pad | Surface Mount | |||||||
Texas Instruments BQ24071EVM | Charge Timer | Battery Charger | BQ24071 | Li-Ion / Li-Pol (1 Cell) | Power Management | Board(s) | ||||||||||||||
Texas Instruments BQ24071RHLT | Current, Timer | 1.5 A | 16 V | 125 ¯C | -40 °C | 1 | Constant - Programmable | 4.2 V | Over Temperature, Reverse Current, Short Circuit | Lithium Ion/Polymer | 20-VQFN (3.5x4.5) | 20-VFQFN Exposed Pad | Surface Mount |
Description
General part information
BQ24071 Series
The bq24070 and bq24071 are highly integrated Li-ion linear charger and system power-path management devices targeted at space-limited portable applications. The bq2407x devices offer DC supply (AC adapter) power-path management with autonomous power-source selection, power FETs and current sensors, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device.
The bq2407x devices power the system while independently charging the battery. This feature reduces the charge and discharge cycles on the battery, allows for proper charge termination, and allows the system to run with an absent or defective battery pack. This feature also allows for the system to instantaneously turn on from an external power source in the case of a deeply discharged battery pack. The IC design is focused on supplying continuous power to the system when available from the AC adapter or battery sources.
The bq24070 and bq24071 are highly integrated Li-ion linear charger and system power-path management devices targeted at space-limited portable applications. The bq2407x devices offer DC supply (AC adapter) power-path management with autonomous power-source selection, power FETs and current sensors, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device.
