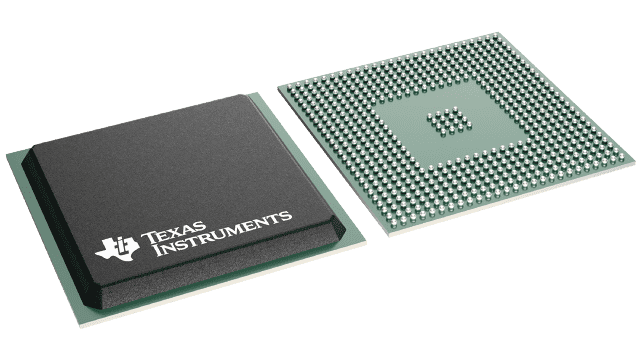

OMFCBGA (ZNZ)

TMS320DM643AZNZ6

NRND
Texas Instruments

DSP FIXED-POINT 32BIT 600MHZ 4800MIPS 548-PIN FCBGA TRAY

Find alt
OMFCBGA (ZNZ)

TMS320DM643AZNZ6

NRND
Texas Instruments

DSP FIXED-POINT 32BIT 600MHZ 4800MIPS 548-PIN FCBGA TRAY

Find alt

Description

General part information

TMS320 Series

The TMS320C672x is the next generation of Texas Instruments' C67x generation of high-performance 32-/64-bit floating-point digital signal processors. The TMS320C672x includes the TMS320C6727B, TMS320C6726B, TMS320C6722B, and TMS320C6720 devices.(1)

Enhanced C67x+ CPU. The C67x+ CPU is an enhanced version of the C67x CPU used on the C671x DSPs. It is compatible with the C67x CPU but offers significant improvements in speed, code density, and floating-point performance per clock cycle. At 350 MHz, the CPU is capable of a maximum performance of 2800 MIPS/2100 MFLOPS by executing up to eight instructions (six of which are floating-point instructions) in parallel each cycle. The CPU natively supports 32-bit fixed-point, 32-bit single-precision floating-point, and 64-bit double-precision floating-point arithmetic.

Efficient Memory System. The memory controller maps the large on-chip 256K-byte RAM and 384K-byte ROM as unified program/data memory. Development is simplified since there is no fixed division between program and data memory size as on some other devices.

Technical Specifications

Parameters and characteristics for this part

SpecificationTMS320DM643AZNZ6
Clock Rate (Frequency)600 MHz
InterfaceMcBSP, Host Interface, I2C, McASP
Mounting TypeSurface Mount
Non-Volatile Memory TypeExternal
On-Chip RAM288 kB
Operating Temperature (Max)90 °C
Operating Temperature (Min)0 °C
Package / CaseFCBGA, 548-BBGA
Package Length27 mm
Package Name548-FCBGA
Package Width27 mm
TypeFixed Point
Voltage - Core1.4 V
Voltage - I/O3.3 V
