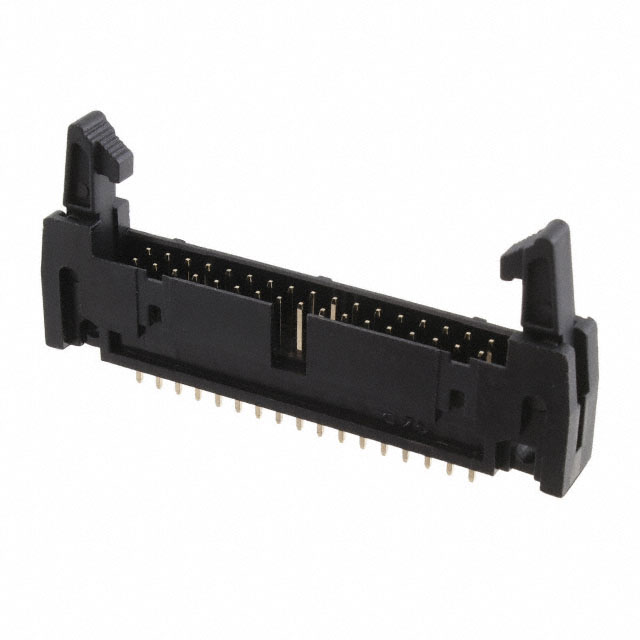

MHR-34-VUAL

Active

Adam Tech

CONN HEADER VERT 34POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 34POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	MHR-34-VUAL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Connector Type	Shrouding	Number of Positions Loaded	Fastening Type	Termination	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish - Post	Current Rating (Amps)	Insulation Color	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Number of Positions	Voltage Rating
Adam Tech MHR-34-HUAL	Header	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Long	Solder	Brass	Flash	Flash	Board to Cable/Wire	Keying Slot	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	Square	8.4 mm	0.331 in	Gold	Gold	3 A	Black	UL94 V-0	3.6 mm	0.142 in	Male Pin	2	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	34	250 VAC
Adam Tech MHR-34-HUAS	Header	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Short	Solder	Brass	Flash	Flash	Board to Cable/Wire	Keying Slot	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	Square	8.4 mm	0.331 in	Gold	Gold	3 A	Black	UL94 V-0	4 mm	0.157 in	Male Pin	2	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	34	250 VAC
Adam Tech MHR-34-VUAL	Header	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Long	Solder	Brass	Flash	Flash	Board to Cable/Wire	Keying Slot	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	Square	8.4 mm	0.331 in	Gold	Gold	3 A	Black	UL94 V-0	3.6 mm	0.142 in	Male Pin	2	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	34	250 VAC
